Hyundai Venue (QX): Light Bulbs / Headlamp, Parking lamp, Daytime Running Light, Turn signal lamp, Cornering lamp and Side marker

Type A

(1) Headlamp (High/Low)
(2) Parking lamp
(3) Turn signal lamp
(4) Side marker

Headlamp and parking lamp

WARNING

• Handle halogen bulbs with care. Halogen bulbs contain pressurized gas that will produce flying pieces of glass that could cause injuries if broken.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

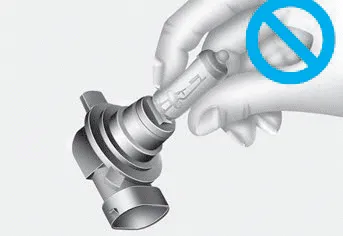

• Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
• A bulb should be operated only when installed in a headlamp.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

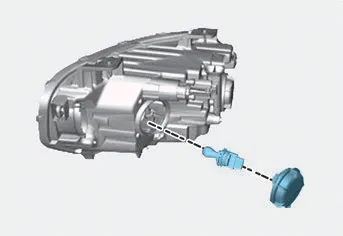

Headlamp and parking lamp

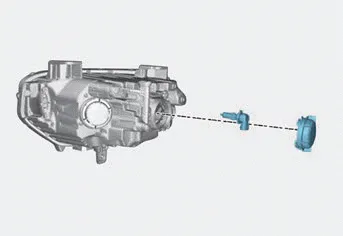

Headlamp (high/low beam)

Parking lamp

1. Open the hood.

2. Disconnect the negative battery cable.

3. Remove the headlamp bulb cover by turning it counterclockwise.

4. Disconnect the headlamp bulb socket-connector.

5. Remove the bulb from the headlamp assembly.

6. Install a new headlamp bulb and snap the headlamp bulb retaining wire into position by aligning the wire with the groove on the bulb.

7. Connect the headlamp bulb socketconnector. 8. Install the headlamp bulb cover by turning it clockwise.

Information

The headlamp aiming should be adjusted after an accident or after the headlamp assembly is reinstalled at an authorized HYUNDAI dealer.

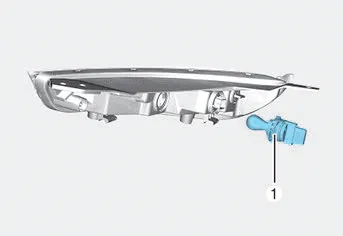

Turn signal lamp/side marker

1. Open the hood.

2. Disconnect the negative battery cable.

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

7. Push the socket into the assembly and turn the socket clockwise.
