Hyundai Venue (QX): Emergency Situations / Tire Pressure Monitoring System (TPMS) (Type B)

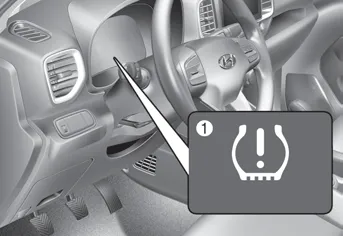

(1) Low Tire Pressure / TPMS Malfunction Indicator Lamp

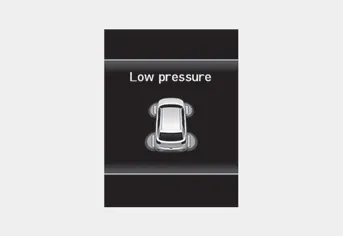

(2) Low Tire Pressure / Tire Pressure Monitor / TPMS Malfunction Display (shown on the cluster LCD display)
- Check Tire Pressure
- Tire Pressure Monitoring System
- Low Tire Pressure Telltale
- TPMS Malfunction Indicator
- Changing a Tire with TPMS
(1) Low Tire Pressure / TPMS Malfunction Indicator Lamp WARNING Over-inflation or under-inflation can reduce tire life, adversely affect vehicle handling, and lead to sudden tire failure that may cause loss of vehicle control resulting in an accident.
You can check the tire pressure in the Assist mode on the cluster. Refer to the “LCD Display Mode” section in chapter 4. A “Drive to display” message will appear for the first few minutes of driving after initial engine start up.
