Components

[Rear drum brake type]

Hyundai Venue. Components and components location

1. Brake assembly
2. Rear hub assembly

3. Rear drum

[Rear disc brake type]

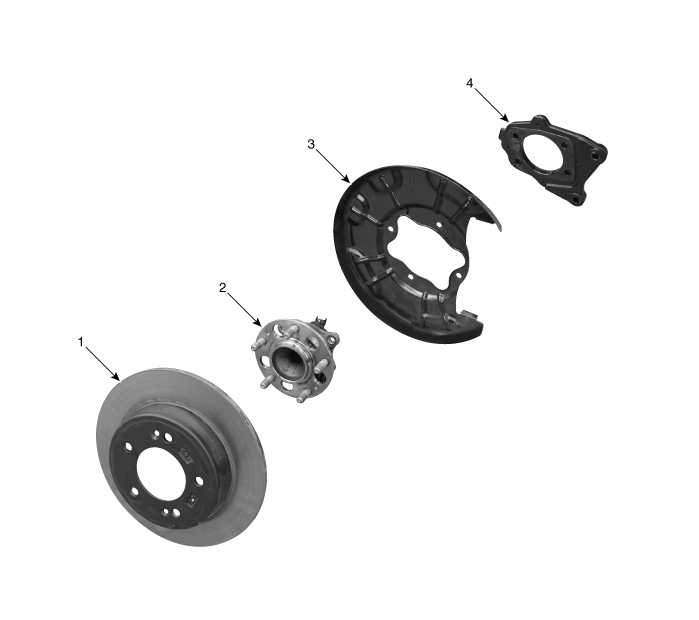

Hyundai Venue. Components and components location

1. Rear brake disc
2. Hub bearing assembly

3. Dust cover
4. Braket

Repair procedures

Removal [Rear drum brake type] 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported...
