Hyundai Venue: Cylinder Block / Drive Plate. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate. Repair procedures

Removal and Installation

1.	Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle")

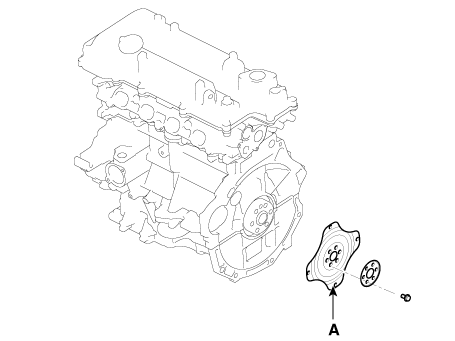

Remove the drive plate(A).

Tightening torque :

71.5 - 75.5 N.m (7.3 - 7.7 kgf.m, 52.8 - 55.6 lb-ft)

Hyundai Venue. Drive Plate. Repair procedures

3.	Install in the reverse order of removal.
