Hyundai Venue. Instrument Panel Fuse Replacement

1. Turn the engine off.

2. Turn all other switches OFF.

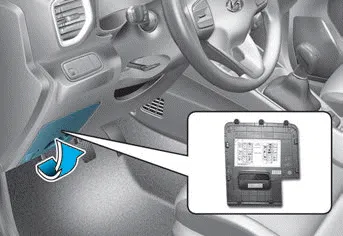

3. Open the fuse panel cover.

4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

Hyundai Venue. Instrument Panel Fuse Replacement

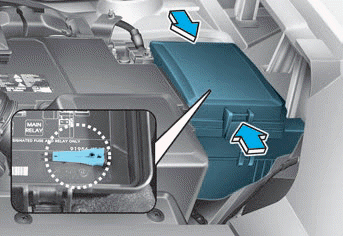

5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.

6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).

7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.

If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.

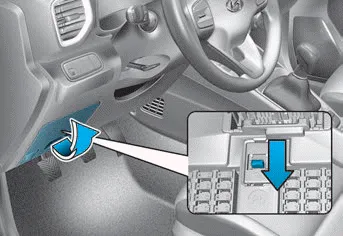

Fuse switch

Hyundai Venue. Instrument Panel Fuse Replacement

Always, place the fuse switch to the ON position.

If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.

Information

Hyundai Venue. Instrument Panel Fuse Replacement

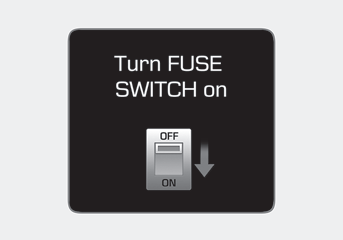

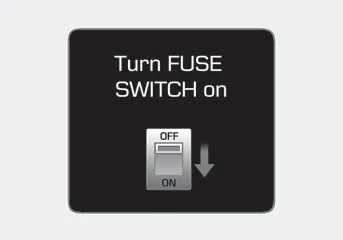

If the fuse switch is OFF, the above message will appear.

NOTICE

  • Always place the fuse switch in the ON position while driving the vehicle.
  • Do not move the fuse switch repeatedly. The fuse switch may be damaged.
