Hyundai Venue: Wiper Blades / Blade Replacement

Hyundai Venue (QX) (2020-2021) Owners Manual / Maintenance / Wiper Blades / Blade Replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

NOTICE

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

NOTICE

The use of a non-specified wiper blade could result in wiper malfunction and failure.

NOTICE

  • In order to prevent damage to the hood and the wiper arms, the wiper arms should only be lifted when in the top wiping position.
  • Always return the wiper arms to the windshield before driving.

Front windshield wiper blade replacement

Hyundai Venue. Blade Replacement

1. Put the front windshield wipers into the service position.

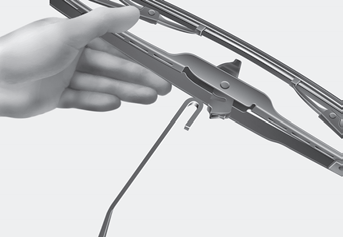

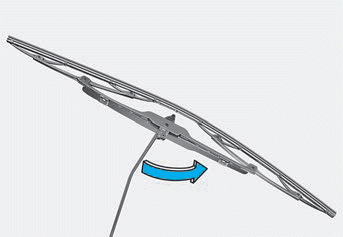

2. Raise the wiper arm and slightly rotate the wiper blade assembly to expose the plastic locking clip.

NOTICE

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

Hyundai Venue. Blade Replacement

Hyundai Venue. Blade Replacement

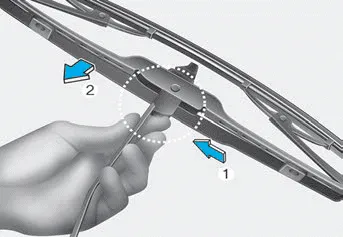

3. Press the clip (1) and slide the blade assembly downward (2).

4. Lift it off the arm.

5. Install the blade assembly in the reverse order of removal.

6. Return the wiper arm on the windshield.

Rear window wiper blade replacement

Hyundai Venue. Blade Replacement

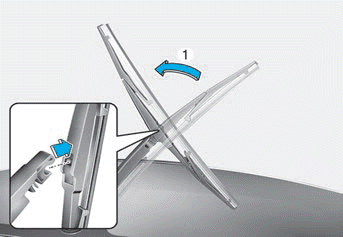

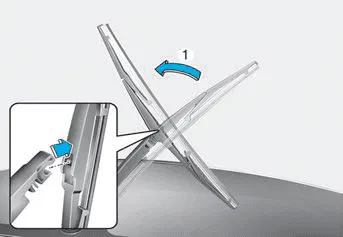

1. Raise the wiper arm and pull out the wiper blade assembly.

2. Install the new blade assembly by inserting the center part into the slot in the wiper arm until it clicks into place.

3. Make sure the blade assembly is installed firmly by trying to pull it slightly.

To prevent damage to the wiper arms or other components, have the wiper blades replaced by an authorized HYUNDAI dealer.
