Components Location

Hyundai Venue. Components and components location

1. PCV Valve
2. Canister
3. Purge Control Solenoid Valve (PCSV)
4. Fuel Level Sensor (FLS)
5. Catalytic Converter (WCC / UCC)

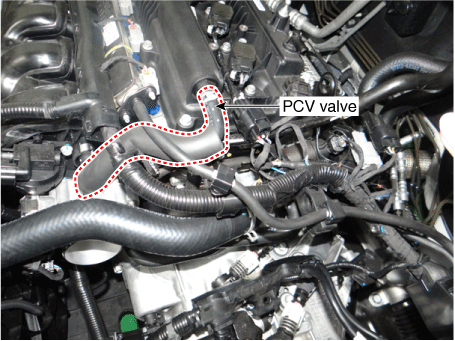

1. PCV Valve

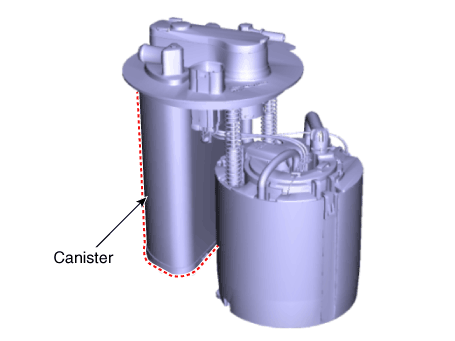

2. Canister

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

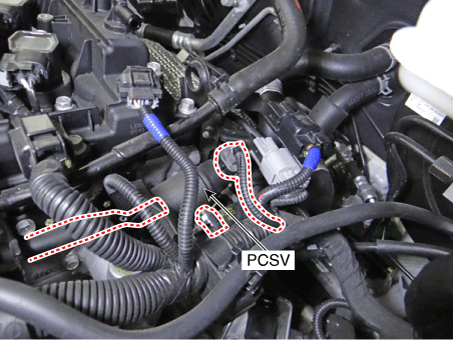

3. Purge Control Solenoid Valve (PCSV)

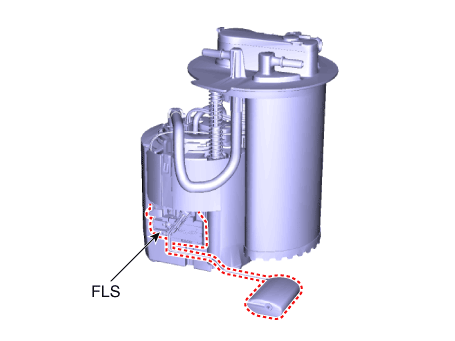

4. Fuel Level Sensor (FLS)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

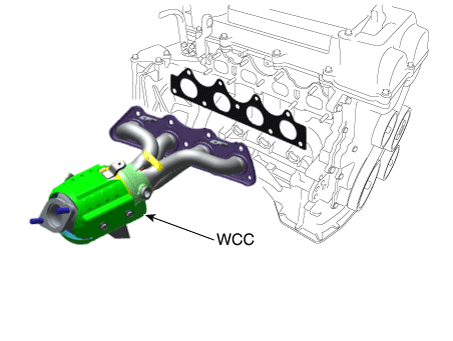

5. Catalytic Converter (WCC)

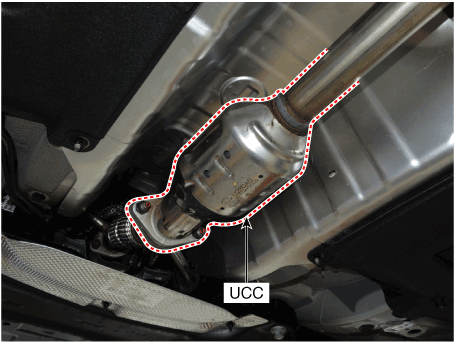

5. Catalytic Converter (UCC)

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location


    Schematic diagrams

    ..

    Crankcase Emission Control System

    ..
