Hyundai Venue: Cruise Control System (CC) / Cruise Control (CC) Switch. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Advanced Driver Assistance System (ADAS) / Cruise Control System (CC) / Cruise Control (CC) Switch. Repair procedures

Inspection
1.
Loosen the cruise control switch connector.

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

2.

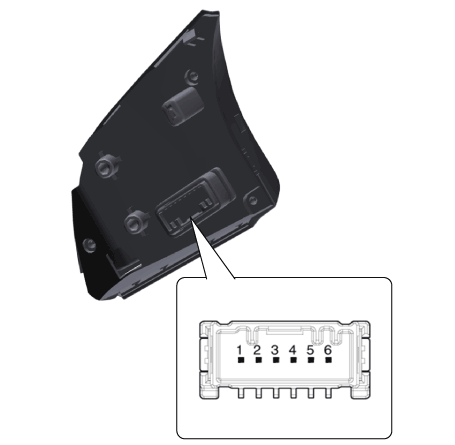

Check for resistance between terminals in each switch position.
Switch
Connector terminal
Resistance (±5%)
Cancel
2 - 6
330Ω
SET -
610Ω
RES +
910Ω
Cruise ON/OFF
1.38 kΩ
Cruise Mode
2.13 kΩ

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel assembly.
(Refer to Steering System - "Steering Wheel")
3.

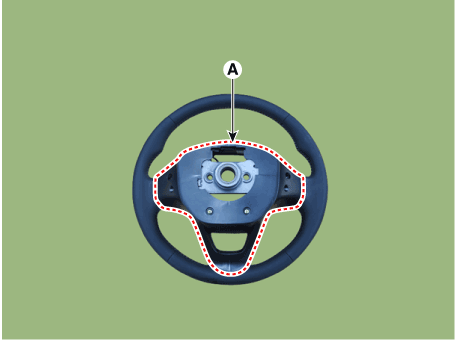

Remove the steering lower cover (A).

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

4.

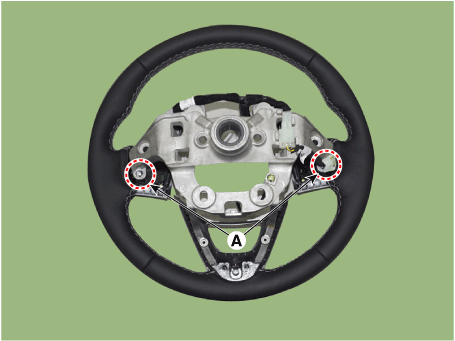

Loosen the steering remote control switch mounting screw.

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

5.

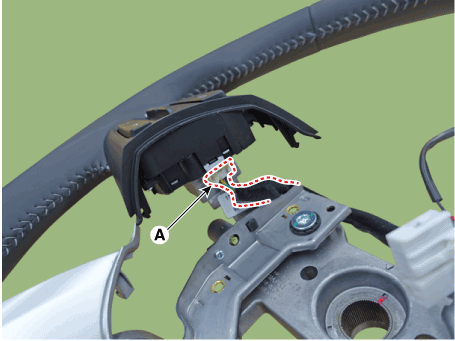

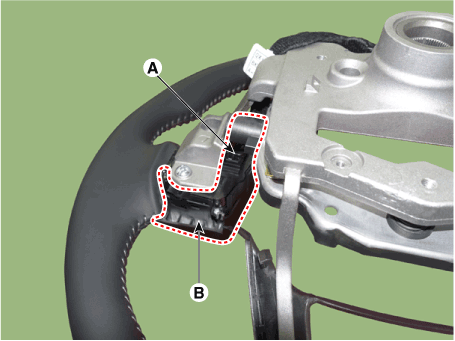

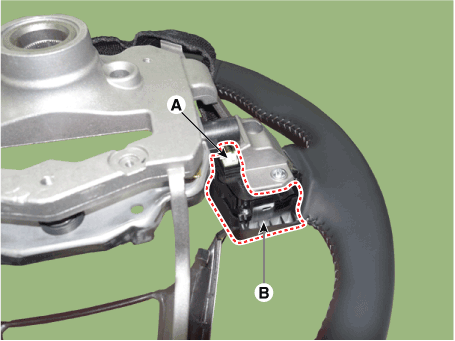

Disconnect the connector (A) and then remove the steering wheel remote control switch (B).
[RH]

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

[LH]

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

Installation
1.
Install the steering wheel remote control after connecting the connector.
2.
Connect the negative (-) battery terminal.
Replacement
1.
Remove the steering wheel.
(Refer to Steering System - "Steering wheel")
2.

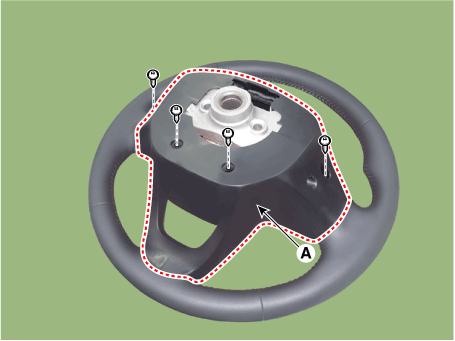

Loosen the screw and then remove the lower cover (A).

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

3.

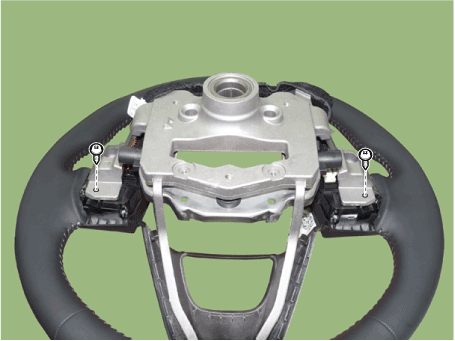

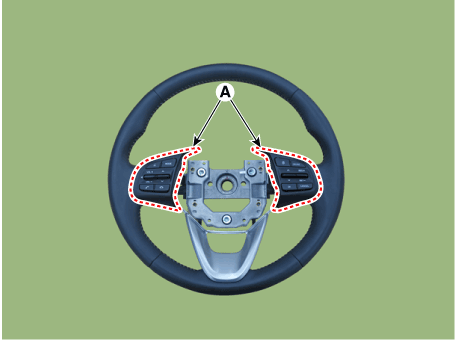

Loosen the remote control switch mounting screws (A).

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

4.

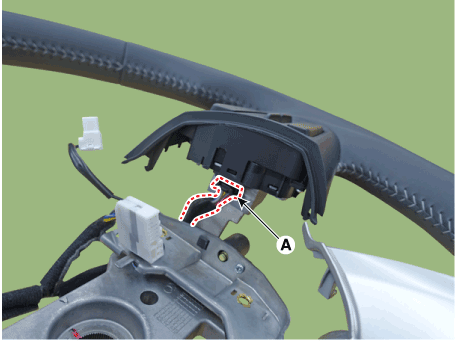

Disconnect the remote control switch connector (A).

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

5.
Loosen the screw and then remove the remote control switch (A).

Hyundai Venue. Cruise Control (CC) Switch. Repair procedures

6.
To install, reverse removal procedure.
