Hyundai Venue: Light Bulbs / Rear Combination Light Bulb Replacement

Hyundai Venue (QX) (2020-2021) Owners Manual / Maintenance / Light Bulbs / Rear Combination Light Bulb Replacement

Hyundai Venue. Rear Combination Light Bulb Replacement

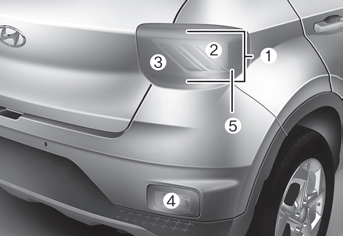

Type A (Standard)

Hyundai Venue. Rear Combination Light Bulb Replacement

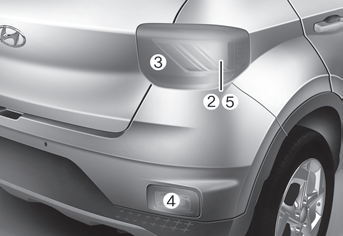

Type B (LED)

(1) Tail lamp
(2) Stop/Tail lamp
(3) Turn signal lamp
(4) Back-up lamp
(5) Side marker

Hyundai Venue. Rear Combination Light Bulb Replacement

Stop/tail lamp and turn signal lamp replacement

1. Open the liftgate.

2. Open the lamp assembly retaining screw covers.

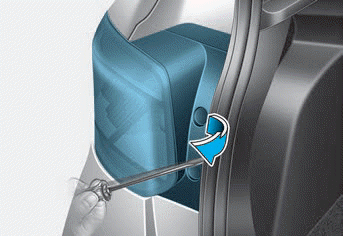

3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.

Hyundai Venue. Rear Combination Light Bulb Replacement

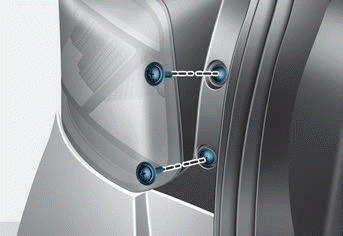

4. Remove the rear combination lamp assembly from the body of the vehicle.

Hyundai Venue. Rear Combination Light Bulb Replacement

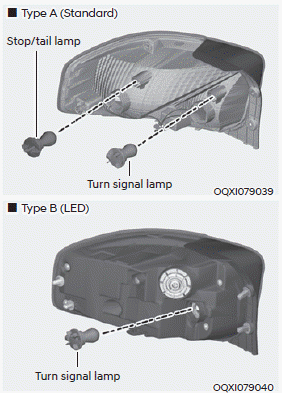

5. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

6. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

8. Install the socket into the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

9. Reinstall the lamp assembly to the body of the vehicle.

Tail / Stop lamp (Type B)

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAi dealer.

Side marker

Your vehicle is equipped with LED lamps. LED lamps do not have replaceable bulbs. If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.

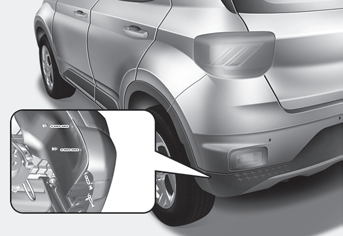

Back up

Hyundai Venue. Rear Combination Light Bulb Replacement

1. Disconnect the negative battery cable.

2. Loosen the retaining clips under the bumper and screws on the wheel house trim.

3. Pry trim under the bumper toward the vehicle.

4. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

5. Remove the bulb by pulling it straight out.

6. Insert a new bulb in the socket.

7. Reinstall the light assembly to the body of the vehicle.

    Side Repeater Lamp Replacement

    Type A Type B [Type A] 1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out. 2. Disconnect the bulb electrical connector...

    High Mounted Stop Lamp & License Plate Light Bulb Replacement

    High Mounted Stop Lamp Replacement 1. Open the liftgate. 2. Remove the lamp cover from the lamp assembly with a cross-tip screwdriver. 3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly...
