Removal
1.
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line")
2.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
3.
Remove the wiring harness after loonsening the mounting bolts.
4.

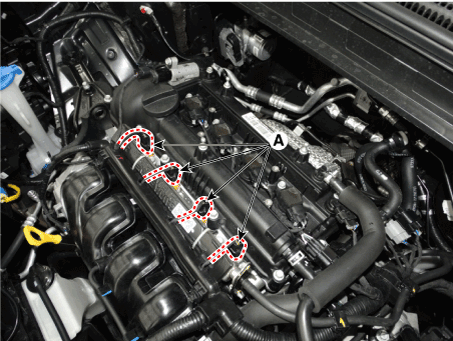

Disconnect the injector connector (A).

Hyundai Venue. Delivery Pipe. Repair procedures

5.

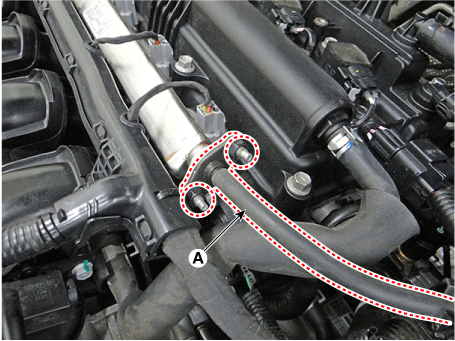

Remove the mounting nuts, and then disconnect the fuel feed tube (A).
Delivery pipe installation nut (↔ Fuel feed tube) :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Hyundai Venue. Delivery Pipe. Repair procedures

6.

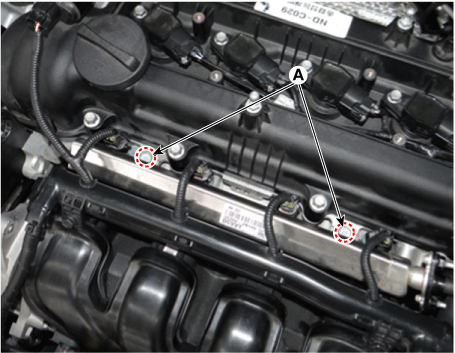

Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.
Delivery pipe installation bolt :
19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.0 lb-ft)

Hyundai Venue. Delivery Pipe. Repair procedures

7.

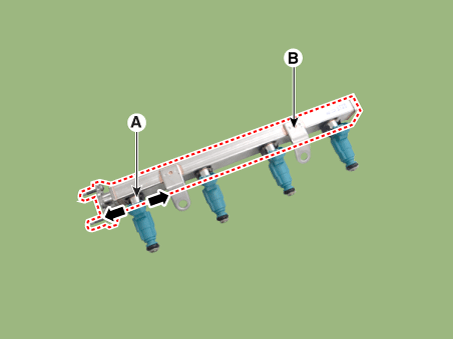

Remove the fixing clip (A), and then separate the injector from the delivery pipe (B).

Hyundai Venue. Delivery Pipe. Repair procedures

Installation
1.
Install in the reverse order of removal.
