Description

•	Engine coolant is used for circulating heat in order to heat and cool the transaxle oil.

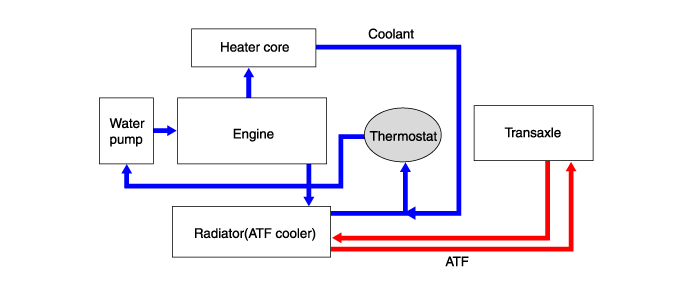

•	Prevents over heating of the transaxle oil while the vehicle is moving. ▶ Flow of the coolant

Automatic Transaxle Cooling System

Oil Cooler. Repair procedures

Repair procedures • ATF cooler is a unit with the radiator, so refer to radiator removal/installation procedures in the engine section...
