Hyundai Venue. Drive Mode Integrated Control System

The drive mode may be selected according to the driver's preference or road condition.

The system resets to be in the NORMAL mode, when the engine is restarted.


If there is a problem with the instrument cluster, the drive mode will be in NORMAL mode and may not change to SPORT mode.

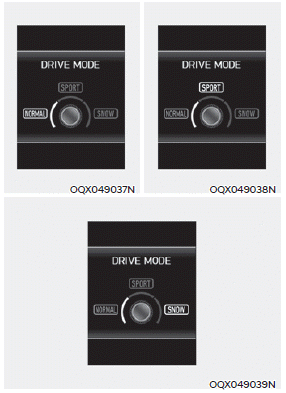

The mode changes, as below, whenever the DRIVE MODE button is pressed.

Hyundai Venue. Drive Mode Integrated Control System

Hyundai Venue. Drive Mode Integrated Control System


In NORMAL mode the engine and transmission control logic work together to provide regular daily driving performance with some fuel efficiency.

• When NORMAL mode is selected, it is not displayed on the instrument cluster.

SPORT mode

Hyundai Venue. Drive Mode Integrated Control System

SPORT mode manages the driving dynamics by automatically adjusting the steering effort, and the engine and transmission control logic for enhanced driving performance.

  • When SPORT mode is selected by pressing the DRIVE MODE button, the SPORT indicator will illuminate.
  • Whenever the engine is restarted, the Drive Mode will revert back to NORMAL mode. If SPORT mode is desired, re-select SPORT mode from the DRIVE MODE button.
  • When SPORT mode is activated:
    -- The engine rpm will tend to remain a little higher for a brief time even after releasing the accelerator. This is a typical when the SPORT mode is activated.
    -- Upshifts are delayed when accelerating


In SPORT mode, the fuel efficiency may decrease.

SNOW mode

Hyundai Venue. Drive Mode Integrated Control System

SNOW mode offers special traction tuning for snow optimizing available traction in adverse conditions. Traction mode adjusts left and right wheel slip control, engine torque and shift patterns according to available traction levels.


Traction mode is designed base on 2WD (2 Wheel Drive), Do not drive in condition that exceed the vehicles intended design.

Invalid mode selection can lead to loss of traction and skidding, particularly on slippery roads, this can cause you to lose control of the vehicle, which can lead to accidents and serious injuries.
