Hyundai Venue: Multifunction Switch / Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Multifunction Switch / Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
3.
Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - "Steering Column Shroud Panal")
4.
Remove the clock spring.
(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")
5.

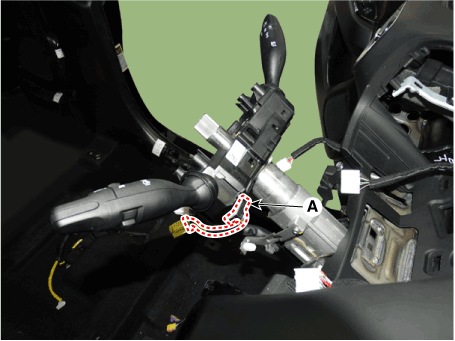

Loosening the screws and disconnecting the connector (A).

Hyundai Venue. Repair procedures
6.

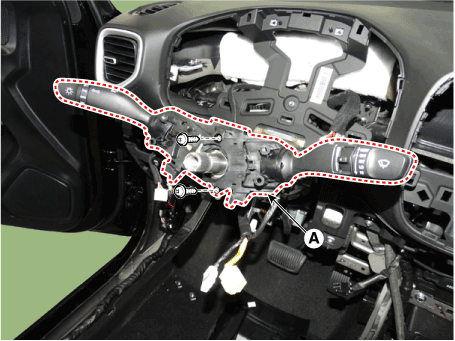

Remove the multifunction switch assembly (A) after loosening the screws.

Hyundai Venue. Repair procedures
Installation
1.
Install the multifunction switch.
2.
Install the clock spring.
3.
Install the steering column upper and lower shrouds.
4.
Install the steering wheel.
Inspection
1.

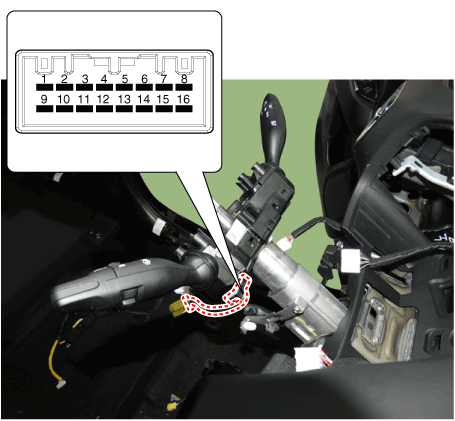

Check for continuity between the terminals in each switch position as shown below.

Hyundai Venue. Repair procedures

Switch
Switch position
Switch terminal
Resistance (Ω, ±3.5%)
Front wiper switch
 MIST
 1 - 9
 330
OFF
 ∞
INT (AUTO)
 800
LOW
 1800
HIGH
 5700
Front wiper intermittent volume
 Volume 1
 7 - 9
 330
Volume 2
 690
Volume 3
 1310
Volume 4
 2610
Volume 5
 7310
Rear wiper switch
OFF
 9 - 16
 ∞
LOW
 910
HIGH
 2910
Fog lamp switch
 OFF
 9 - 10
 ∞
Front foglamp
 910
Rear foglamp
 2910
Turn signal switch
 OFF
 9 - 12
 ∞
Left
 910
Right
 2910
Dimmer & Passing switch
 OFF
 9 - 13
 ∞
Passing
 910
Dimmer
 2910
Light switgh
 OFF
 9 - 14
 680
AUTO
 ∞
Tail lamp
 1680
Low beam
 5580
