Hyundai Venue: Fuse/Relay Panel Description / Engine compartment fuse panel

Hyundai Venue (QX) (2020-2022) Owners Manual / Maintenance / Fuses / Fuse/Relay Panel Description / Engine compartment fuse panel

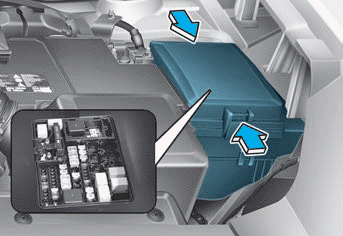

Hyundai Venue. Engine compartment fuse panel

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Hyundai Venue. Engine compartment fuse panel

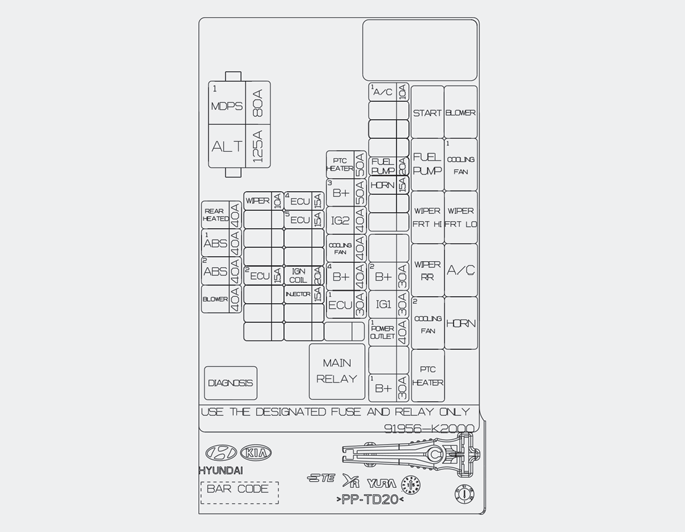

Engine compartment fuse panel

Hyundai Venue. Engine compartment fuse panel

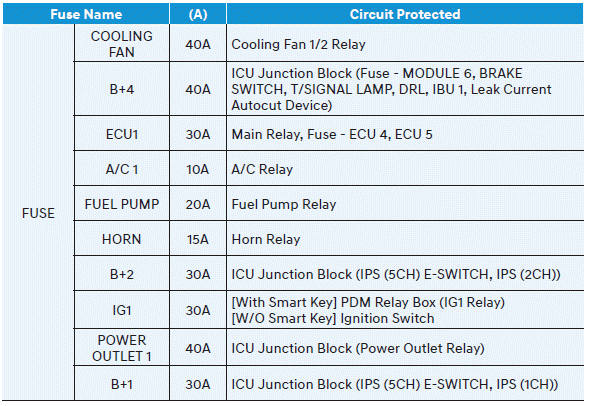

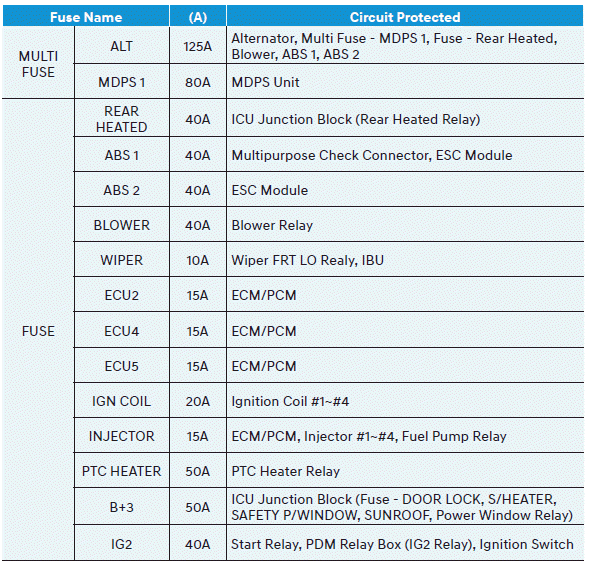

Engine compartment fuse panel

Hyundai Venue. Engine compartment fuse panel
