Shift-lock system

For your safety, the Intelligent Variable Transmission (IVT) has a shift-lock system which prevents shifting the transmission from P (Park) into R (Reverse) unless the brake pedal is depressed.

To shift the transmission from P (Park) into R (Reverse):

1. Depress and hold the brake pedal.

2. Start the engine or place the ignition switch in the ON position.

3. Move the shift lever.

Shift-lock release

Hyundai Venue. Shift-lock system, Shift-lock release, Parking

If the shift lever cannot be moved from the P (Park) position into R (Reverse) position with the brake pedal depressed, continue depressing the brake, and then do the following:

1. Place the ignition switch in the LOCK/ OFF position.

2. Apply the parking brake.

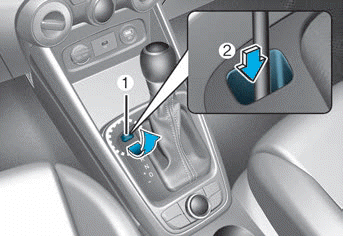

3. Carefully remove the cap (1) covering the shift-lock release access hole.

4. Insert a tool (e.g. flathead screwdriver) into the access hole and press down on the tool (2).

5. Move the shift lever.

6. Remove the tool from the shift-lock override access hole then install the cap.

If you need to use the shift-lock release, have your vehicle inspected by an authorized HYUNDAI dealer immediately.

Parking

Always come to a complete stop and continue to depress the brake pedal. Move the shift lever into the P (Park) position, apply the parking brake, and place the ignition switch in the LOCK/ OFF position. Take the Key with you when exiting the vehicle.

WARNING

  • When you stay in the vehicle with the engine running, be careful not to depress the accelerator pedal for a long period of time. The engine or exhaust system may overheat and start a fire.
  • The exhaust gas and the exhaust system are very hot. Keep away from the exhaust system components.
  • Do not stop or park over flammable materials, such as dry grass, paper or leaves. They may ignite and cause a fire.
