Hyundai Venue. Exterior Overview

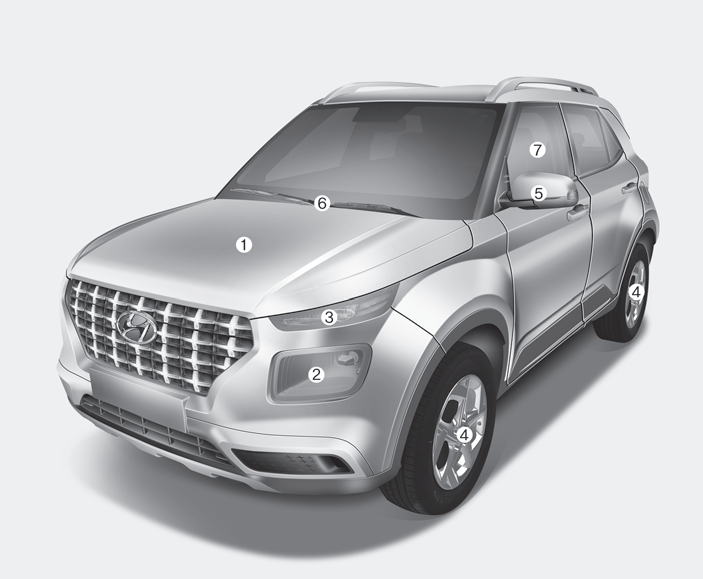

Front view

1. Hood
2. Headlamp/Daytime running lamp
3. Turn signal lamp
4. Tires and wheels
5. Outside rearview mirror
6. Front windshield wiper blades
7. Windows

Hyundai Venue. Exterior Overview

Rear view

1. Antenna
2. Doors
3. Fuel filler door
4. High mounted stop lamp
5. Rear view camera
6. Rear window wiper blade
7. Liftgate
8. Rear lamps
9. Back-up lamp
