Hyundai Venue: Body Side Molding / Fender Garnish. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Body Side Molding / Fender Garnish. Repair procedures

Replacement
Hyundai Venue. Fender Garnish. Repair procedures
Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.
1.

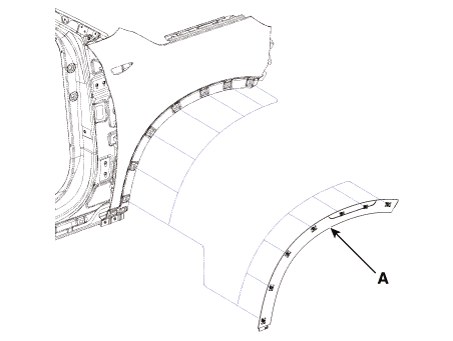

Using a remover, remove the fender garnish (A).

Hyundai Venue. Fender Garnish. Repair procedures

2.
To install, reverse removal procedure.
Hyundai Venue. Fender Garnish. Repair procedures
Replace any damaged clips (or pin-type retainers).
