Hyundai Venue: Cylinder Block / Flywheel. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Engine Mechanical System / Cylinder Block / Flywheel. Repair procedures

Removal and installation

1.	Remove the manual transaxle. (Refer to Manual Transaxle System - "Manual Transaxle")

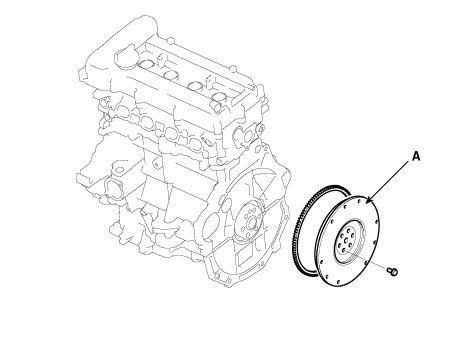

Remove the flywheel (A).

Tightening torque :

71.6 - 75.5 N.m (7.3 - 7.7 kgf.m, 52.8 - 55.6 lb-ft)

Hyundai Venue. Flywheel. Repair procedures

3.	Install in the reverse order of removal.
