Hyundai Venue: Exterior Features / Hood

Hyundai Venue (QX) (2020-2024) Owners Manual / Convenient Features / Exterior Features / Hood

Opening the hood

Hyundai Venue. Hood

1. Park the vehicle and set the parking brake.

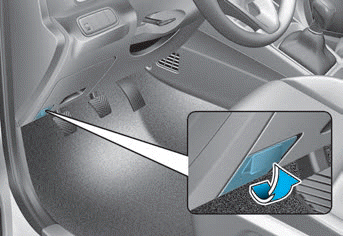

2. Pull the release lever to unlatch the hood. The hood should pop open slightly.

Hyundai Venue. Hood

3. Go to the front of the vehicle, raise the hood slightly, push up the secondary latch (1) inside of the hood center and lift the hood (2).

Hyundai Venue. Hood

4. Pull out the support rod and hold the hood open with the support rod.

WARNING

The support rod must be inserted completely into the hole provided whenever you inspect the engine compartment. This will prevent the hood from becoming dislodged and falling and causing potential injury.

Closing the hood

1. Before closing the hood, check in and around the engine compartment to ensure the following:

-- Any tools or other loose objects are removed from the engine room area or hood opening area
-- All glove, rags, or other combustible material is removed from the engine compartment
-- All filler caps are tightly and correctly installed

2. Lower the hood halfway (lifted approximately 12 inches (30 cm) from the closed position) and push down to securely lock in place. Then double check to be sure the hood is secure. If the hood can be raised slightly, it is not securely locked. Open it again and close it with more force.

WARNING

  • Before closing the hood, ensure all obstructions are removed from around the hood opening.
  • Always double check to be sure that the hood is firmly latched before driving away. Check there is no hood open warning light or message displayed on the instrument cluster. Driving with the hood opened may cause a total loss of visibility, which might result in an accident.
  • Do not move the vehicle with the hood in the raised position, as vision is obstructed, which might result in an accident, and the hood could fall or be damaged.
