Hyundai Venue: Blind-Spot Collision Warning (BCW) / Limitations of the System

Hyundai Venue (QX) (2020-2021) Owners Manual / While Driving / Blind-Spot Collision Warning (BCW) / Limitations of the System

The driver must be cautious in the below situations because the system may not detect other vehicles or objects in certain circumstances:

  • The vehicle is driven in inclement weather such as heavy rain or snow.
  • The sensor is polluted with rain, snow, mud, etc.
  • The rear bumper where the sensor is located is covered with a foreign object such as a bumper sticker, a bumper guard, a bike rack, etc.
  • The rear bumper is damaged, or the sensor is out of the original default position.
  • The vehicle height gets lower or higher due to heavy loading in a liftgate, abnormal tire pressure, etc.
  • When the temperature of the rear bumper is high.
  • When the sensors are blocked by other vehicles, walls or parking-lot pillars.
  • The vehicle is driven on a curved road.
  • The vehicle is driven through a tollgate.
  • The road pavement (or the peripheral ground) abnormally contains metallic components (i.e. possibly due to subway construction).
  • There is a fixed object near the vehicle, such as a guardrail.
  • While going down or up a steep road where the height of the lane is different.
  • Driving on a narrow road where trees or grass or overgrown.
  • Driving in rural areas where the sensor does not detect another vehicle or structure for an extended period of time.
  • Driving on a wet road.
  • Driving on a road where the guardrail or wall is in double structure.
  • A big vehicle is near such as a bus or truck.
  • When the other vehicle approaches very close.
  • When the other vehicle passes at a very fast speed.
  • While changing lanes.
  • If the vehicle has started at the same time as the vehicle next to you and has accelerated.
  • When the vehicle in the next lane moves two lanes away from you OR when the vehicle two lanes away moves to the next lane from you.
  • A motorcycle or bicycle is near.
  • A flat trailer is near.
  • If there are small objects in the detecting area such as a shopping cart or a baby stroller.
  • If there is a low height vehicle such as a sports car.
  • Temperature is extremely low around the vehicle.

Hyundai Venue. Limitations of the System

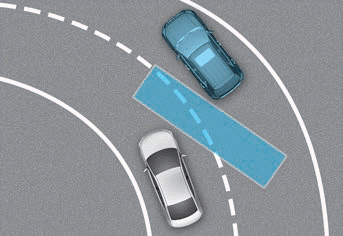

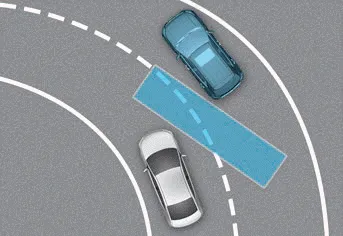

• Driving on a curve

The system may not operate properly when driving on a curved road. In certain instances, the system may not detect the vehicle in the next lane.

Always pay attention to road and driving conditions, while driving.

Hyundai Venue. Limitations of the System

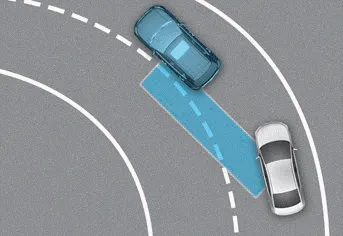

The system may not operate properly when driving on a curved road. In certain instances, the system may recognize a vehicle in the same lane.

Always pay attention to road and driving conditions, while driving.

Hyundai Venue. Limitations of the System

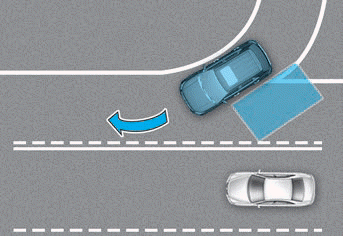

• Driving where the road is merging/ dividing

The system may not operate properly when driving where the road is merging/dividing. In certain instances, the system may not detect the vehicle in the next lane.

Always pay attention to road and driving conditions, while driving.

Hyundai Venue. Limitations of the System

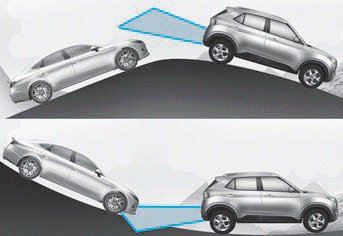

• Driving on a slope

The system may not operate properly when driving on a slope. In certain instances, the system may not detect the vehicle in the next lane.

Also, in certain instances the system may wrongly recognize the ground or structures.

Always pay attention to road and driving conditions, while driving.

Hyundai Venue. Limitations of the System

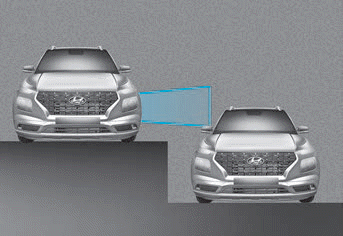

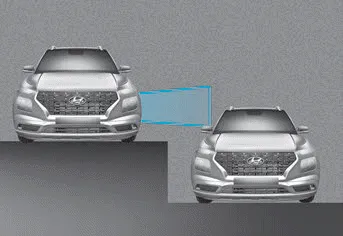

• Driving where the heights of the lanes are different

The system may not operate properly when driving where the heights of the lanes are different.

In certain instances, the system may not detect the vehicle on a road with different lane heights (i.e. underpass joining section, grade separated intersections, etc.).

Always pay attention to road and driving conditions, while driving.

Hyundai Venue. Limitations of the System

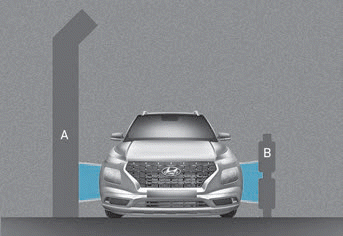

[A] : noise barrier, [B] : guardrail

• Driving where there is a structure beside the road

The system may not operate properly when driving where there is structure beside the road.

In certain instances, the system may wrongly recognize the structures (i.e. noise barriers, guardrail, double guardrail, median strip, bollard, street light, road sign, tunnel wall, etc.) beside the road.

Always pay attention to road and driving conditions, while driving.

Information

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

    Detecting Sensor

    The rear corner radars are located inside the rear bumper for detecting the side and rear areas. Always keep the rear bumper clean for proper operation of the system...
