Hyundai Venue: Interior Trim / Luggage Side Trim. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Interior Trim / Luggage Side Trim. Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly (Refer to Rear Seat - "Rear Seat Assembly")

2.	Carefully remove the rear door body side weatherstrip.

3.	Carefully remove the tail gate weatherstrip.

4.	Remove the rear door scuff trim. (Refer to Interior Trim - "Door Scuff Trim")

5.	Remove the rear transverse trim. (Refer to Interior Trim - "Rear Transverse Trim")

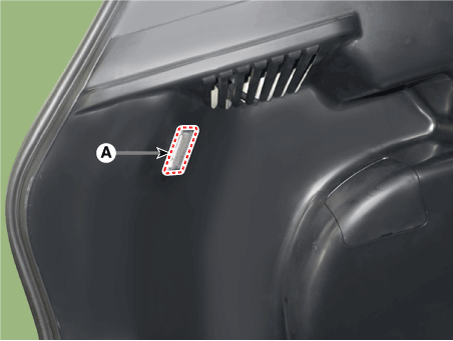

6.	Using a lfat-tip screwdriver and remove the luggage room lamp (A).

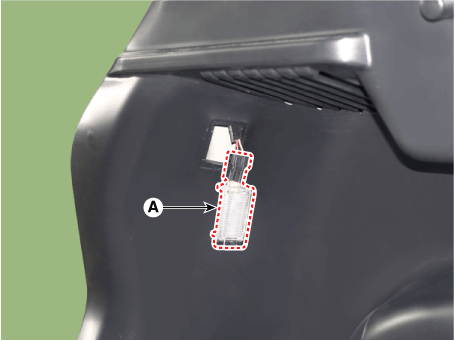

7.	Separate the luggage lamp connector and remove the luggage room lamp (A).

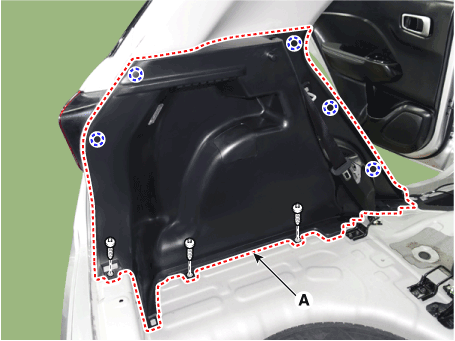

8.	Loosen the mounting screws and remove the luggage side trim (A).

To install, reverse removal procedure.

•	Replace any damaged clips (or pin-type retainers).
