Hyundai Venue (QX): Convenient Features / Infotainment System

NOTICE

• If you install an aftermarket HID head lamp, your vehicle’s audio and electronic devices may not function properly.
• Prevent chemicals such as perfume, cosmetic oil, sun cream, hand cleaner, and air freshener from contacting the interior parts because they may cause damage or discoloration.

USB and iPod® Port

You can use an AUX or USB cable to connect audio devices to the vehicle AUX or USB port.

Information

When using a portable audio device connected to the power outlet, noise may occur during playback. If this happens, use the portable audio device’s power source.

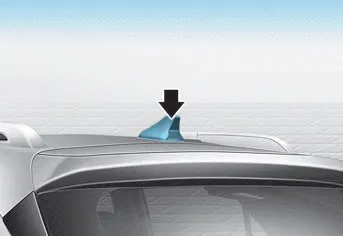

Antenna

Shark fin antenna

The shark fin antenna receives transmitted data. (for example: AM/FM, SXM, GPS, LTE)

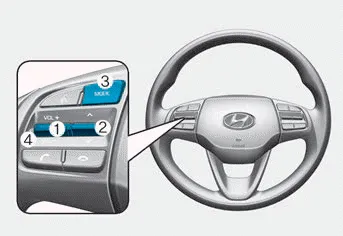

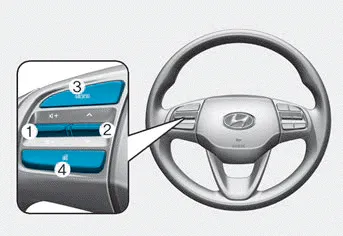

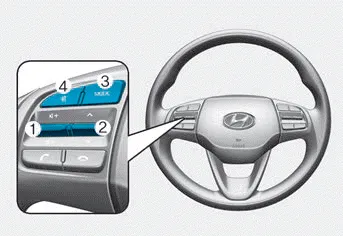

Steering Wheel Audio Control

Type A

Type B

Type C

NOTICE

Do not operate multiple audio remote control buttons simultaneously.

VOLUME (VOL + / -) (1)

• Press the VOLUME switch up to increase volume.
• Press the VOLUME switch down to decrease volume.

SEEK/PRESET () (2)

If the SEEK/PRESET switch is pressed up or down and held for 0.8 second or more, it will function in the following modes:

• RADIO mode

It will function as the AUTO SEEK select button. It will SEEK until you release the button.

• MEDIA mode

It will function as the FF/RW button.

If the SEEK/PRESET switch is pressed up or down, it will function in the following modes:

• RADIO mode

It will function as the PRESET STATION UP/DOWN button.

• MEDIA mode

It will function as the TRACK UP/ DOWN button.

MODE () (3)

Press the MODE button to toggle through Radio, SXM, or AUX modes.

MUTE () (4)

• Press the MUTE button to mute the sound.
• Press the MUTE button again to activate the sound.

Information

Detailed information for audio control buttons are described in a separately supplied manual with the vehicle.

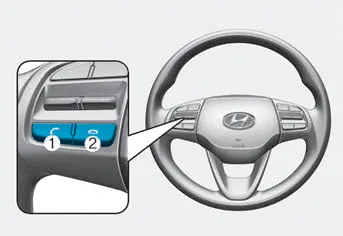

Bluetooth® Wireless Technology Hands-Free

With the Bluetooth® Wireless Technology in the vehicle, you can use the phone wireless.

(1) Call / Answer button
(2) Call end button

Detailed information for the Bluetooth® Wireless Technology hands-free is described in the Vehicle Infotainment User’s Manual.

Audio (Display Audio) / Video / Navigation System (AVN) (if equipped)

Detailed information for the AVN system is described in the Vehicle Infotainment User’s Manual.
