Hyundai Venue (QX): Light Bulbs / Side Repeater Lamp Replacement
Type A
Type B

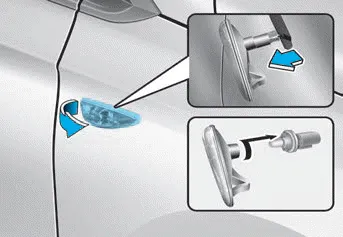

[Type A]
1. Remove the lamp assembly from the vehicle by prying the lens and pulling the assembly out.
2. Disconnect the bulb electrical connector.
3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with the slots on the lens part.
4. Remove the bulb by pulling it straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the body of the vehicle.

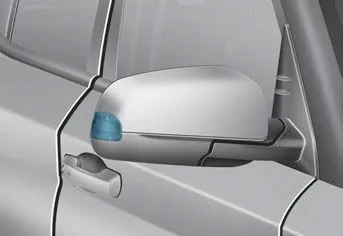

[Type B]
If the LED lamp does not operate, have the vehicle checked by an authorized HYUNDAI dealer.
(1) Cornering lamp (2) Headlamp (Low/High) (3) Daytime running lamp/parking lamp (4) Turn signal lamp (5) Side marker Headlamp (bulb type) WARNING Handle halogen bulbs with care.
Type A (Standard) Type B (LED) (1) Tail lamp (2) Stop/Tail lamp (3) Turn signal lamp (4) Back-up lamp (5) Side marker Stop/tail lamp and turn signal lamp replacement 1.
