Hyundai Venue (QX): Sunroof / Sunroof opening and closing
To open the sunroof:

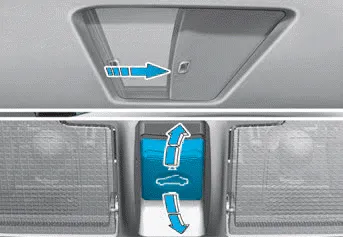

Press the sunroof control lever backward to the first detent position. Release the switch when you want the sunroof to stop.
To close the sunroof:
Press the sunroof control lever forward to the first detent position. Release the switch when you want the sunroof to stop.
If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control switch located on the overhead console. Type A Type B The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.
Pressing the sunroof control lever backward or forward momentarily to the second detent position, the sunroof will slide to the recommended open position before the maximum slide open position.
