Hyundai Venue. Rear lamp

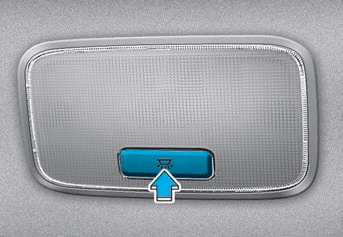

Type A

Hyundai Venue. Rear lamp

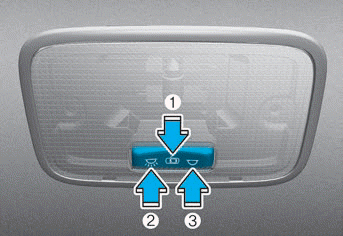

Type B

Rear Room Lamp (Hyundai Venue. Rear lamp):

Press this switch to turn the rear room lamp on and off.

Hyundai Venue. Rear lamp (1): The room lamp for the rear seats is automatically turned ON for approximately 30 seconds, when a door is opened. The room lamp for the rear seats is automatically turned ON for approximately 15 seconds, when the remote key (smart key) unlocks the doors. The room lamp fades out, when the ignition switch is placed to the ON position in 15 seconds. The room lamp remains ON up to 20 minutes, when a door is opened with the ignition switch in the either the ACC or OFF position.

Hyundai Venue. Rear lamp (2): With the Rear Room Lamp in this position, the rear room lamp remain on at all times.

Hyundai Venue. Rear lamp (3): With the Rear Room Lamp in this position the rear room lamp remain off at all times.

NOTICE

Do not leave the lamp switches on for an extended period of time when the engine is turned off.

    Front lamps

    Type A Type B Front Map Lamp (1): Press either lenses to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger...

    Luggage compartment lamp

    The luggage compartment lamp comes on when the liftgate is opened. NOTICE The luggage compartment lamp comes on as long as the liftgate is open.To prevent unnecessary battery system drain, close the liftgate securely after using the luggage compartment...
