Hyundai Venue. Rear seat head restraints

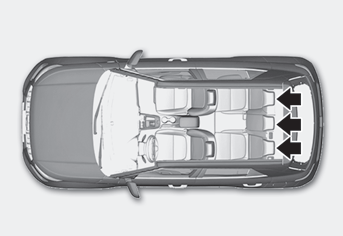

The rear seats are equipped with head restraints in all the seating positions for the passenger’s safety and comfort.

CAUTION

  • For each rear passenger, adjust the head restraint so that the middle of the head restraint is at the same height as the height of the top of the eyes.

Hyundai Venue. Rear seat head restraints

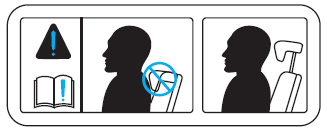

  • When seating on the rear seat, do not adjust the height of the head restraints to the lowest position.

Hyundai Venue. Rear seat head restraints

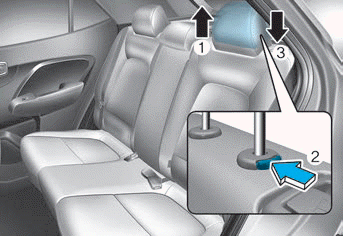

Adjusting the height up and down

To raise the head restraint:

1. Pull it up to the desired position (1).

To lower the head restraint:

1. Push and hold the release button (2) on the head restraint support.

2. Lower the head restraint to the desired position (3).

Hyundai Venue. Rear seat head restraints

Removal/Reinstallation

To remove the head restraint:

1. Raise the head restraint as far as it can go.

2. Press the head restraint release button (2) while pulling the head restraint up (1).

To reinstall the head restraint:

1. Put the head restraint poles into the holes (3) while pressing the release button (2).

2. Adjust the head restraint to the appropriate height.
