Compession Pressure Inspection
Hyundai Venue. Repair procedures
If the there is lack of power, excessive oil consumption or poor fuel economy, measure the compression pressure.
1.
Make sure the oil in the crankcase is of the correct viscosity and at the correct level and that the battery is correctly charged. Operate the vehicle until the engine is at normal operating temperature. Turn the ignition switch to the OFF position.
2.
Remove the engine center cover.
3.

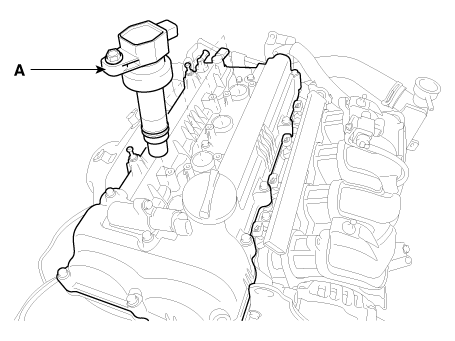

Remove the ignition coil (A).

Hyundai Venue. Repair procedures

4.
Remove the spark plugs.
Using a 16mm plug wrench, remove the 4 spark plugs.
5.
Check the cylinder compression pressure.
(1)

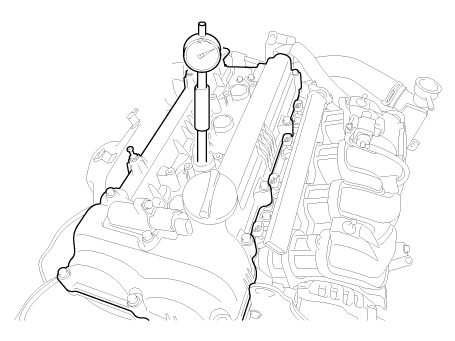

Insert a compression gauge into the spark plug hole.

Hyundai Venue. Repair procedures

(2)
Set the throttle plate in the wide-open position.
(3)
While cranking the engine, measure the compression pressure.
Hyundai Venue. Repair procedures
Always use a fully charged battery to obtain engine speed of 250rpm or more.
(4)
Repeat step 1) through 3) for each cylinder.
Hyundai Venue. Repair procedures
This measurement must be done in as short time as possible.
Compression pressure
Standard : 1225.83kPa (12.5kg/cm², 177.79psi) (200-250 rpm)
Minimum : 1078.73kPa (11.0kg/cm², 156.46psi)
Difference between each cylinder :
98kPa (1.0kg/cm², 14psi) or less
(5)
If the cylinder compression in one or more cylinders is low, pour a small amount of engine oil into the cylinder through the spark plug hole and repeat step 1) through 3) for cylinders with low compression.
If adding oil helps the compression, it is likely that the piston rings and/or cylinder bore are worn or damaged.
If pressure stays low, a valve may be sticking or seating is improper, or there may be leakage past the gasket.
6.
Install the spark plugs.
7.
Install the ignition coil (A).

Hyundai Venue. Repair procedures

8.
Install the engine center cover.
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
