Hyundai Venue: Manifold Absolute Pressure Sensor (MAPS) / Repair procedures

Hyundai Venue (QX) (2020-2022) Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) / Repair procedures

Inspection
1.
Connect a diagnostic tool on Data Link Connector (DLC).
2.
Check MAPS output voltage at idle and IG ON.
Condition
Output Voltage (V)
IG ON
3.9 - 4.1
Idle
0.8 - 1.6

Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2.

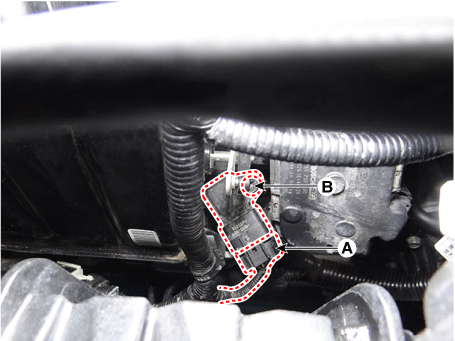

Disconnect the manifold absolute pressure sensor connector (A).
3.
Remove the mounting bolt (B), and then remove the sensor from the intake manifold.
Manifold absolute pressure sensor installation bolt :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Hyundai Venue. Repair procedures

Installation
Hyundai Venue. Repair procedures
Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
Hyundai Venue. Repair procedures
Insert the sensor in the installation hole and be careful not to damage when installation.
1.
Install in the reverse order of removal.

    Schematic diagrams

    ..

    Intake Air Temperature Sensor (IATS)

    ..
