Hyundai Venue: Motor Driven Power Steering / Schematic diagrams

Hyundai Venue (QX) (2020-2025) Service Manual / Steering System / Motor Driven Power Steering / Schematic diagrams

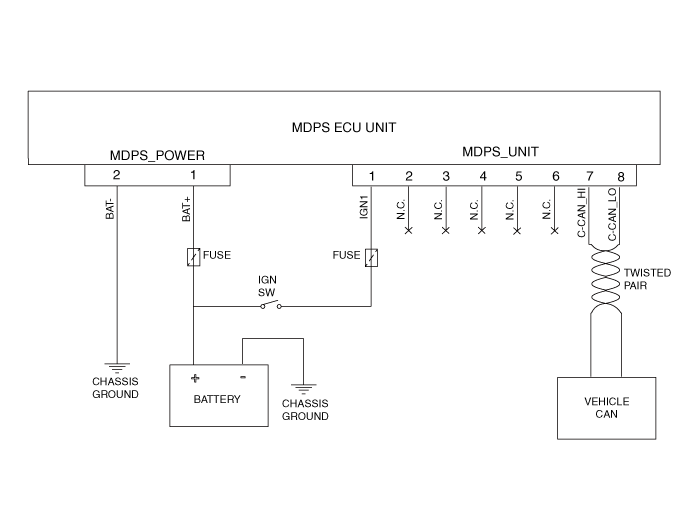

Schematic Diagrams

Hyundai Venue. Schematic diagrams

Terminal Function

Hyundai Venue. Schematic diagrams

Type
Pin No
Description
Battery
1
Battery +
2
Battery -
VSS
1
IGN
2
-
3
-
4
-
5
-
6
-
7
HIGH CAN
8
LOW CAN
