Components

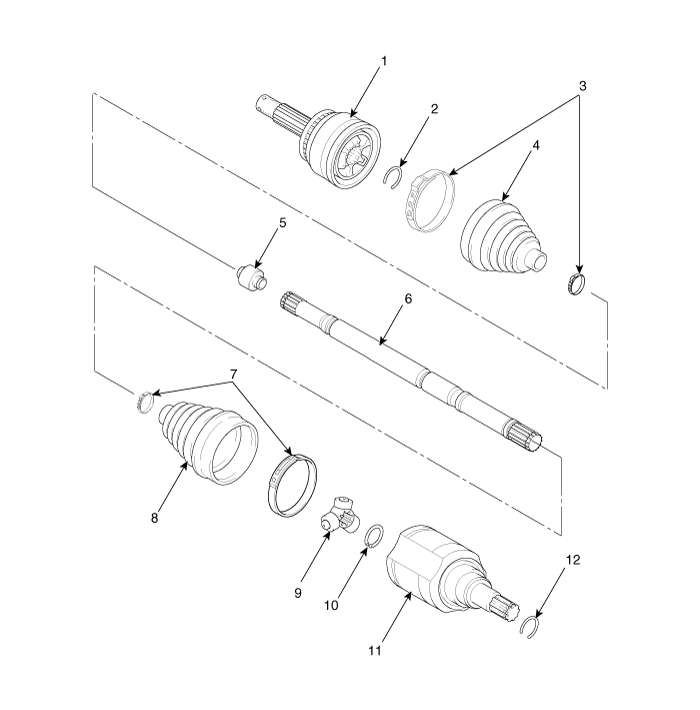

[RH]

Hyundai Venue. TJ Joint. Components and components location

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper
6. Shaft
7. TJ boot band
8. TJ boot
9. Spider assembly
10. Snap ring
11. TJ housing
12. Clip

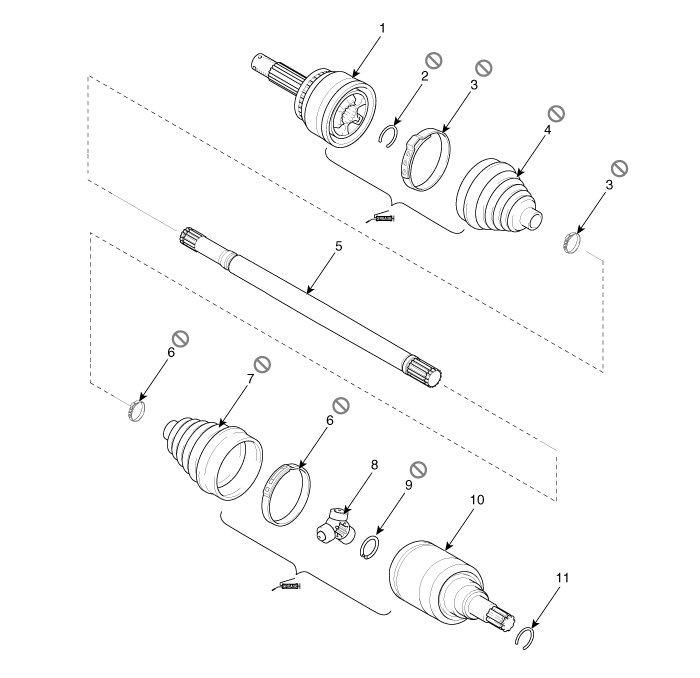

[LH]

Hyundai Venue. TJ Joint. Components and components location

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ Case
11. Clip
