Removal and Installation
1.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "Engine Cover")
2.
Disconnect the battery negative terminal.
3.
Remove the air duct and air cleaner assembly.
Tightening torque
Hose clamp bolt :
2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)
Air cleaner assembly bolts :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)
(1)
Remove the air duct (A).

Hyundai Venue. Air Cleaner. Repair procedures

(2)

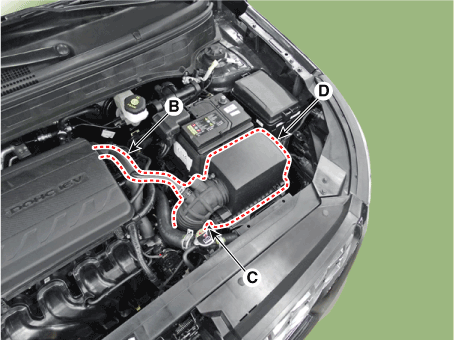

Disconnect the breather hose (B) and air intake hose (C).
(3)
Remove the air cleaner assembly (D).

Hyundai Venue. Air Cleaner. Repair procedures

4.
Install in the reverse order of removal.
Air Cleaner Element Replacement
1.

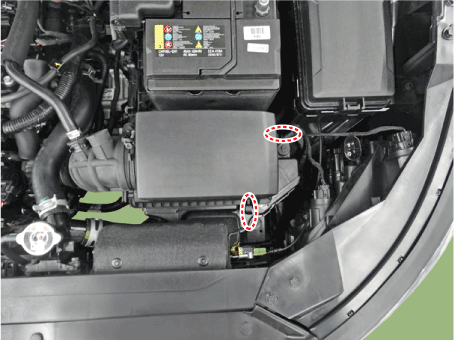

Open the air cleaner cover by unhooking the clamps.

Hyundai Venue. Air Cleaner. Repair procedures

2.

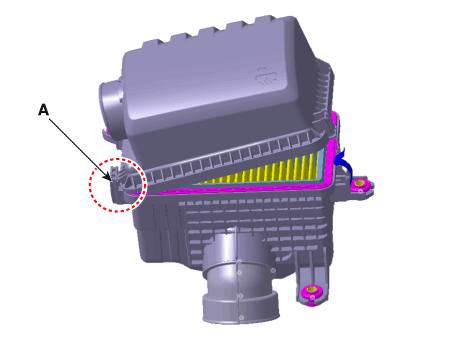

Replace the air cleaner element (A) with a new one.

Hyundai Venue. Air Cleaner. Repair procedures

Hyundai Venue. Air Cleaner. Repair procedures
If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.
3.
Close the air cleaner cover by hooking the clamps.

Hyundai Venue. Air Cleaner. Repair procedures
