Description
1.

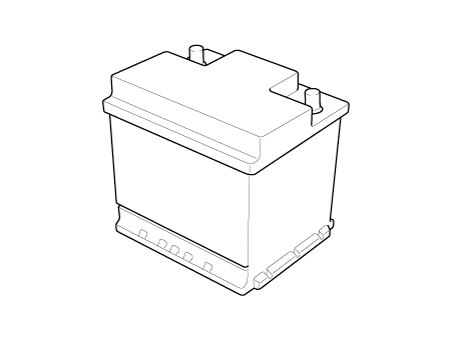

The CMF (Closed Maintenance Free) battery is, as the name implies, totally maintenance free and has no removable battery cell caps.
2.
The MF (Closed Maintenance Free) battery does not require water replenishment for the repair.
3.
The battery is completely sealed, except for small vent holes in the cover.

Hyundai Venue. Battery. Description and operation
Hyundai Venue. Battery. Description and operation
•
After disconnecting then reconnecting the battery negative cable, reset some parts that require the reset procedures.
(Refer to Body Electrical System - "General Information")

    Removal 1. Turn ignition switch OFF and disconnect the battery negative (-) terminal. 2. Remove the drive belt.

    Specifications Battery Item Specification Model type CM 45L-DIN Capacity [20HR / 5HR] (AH) 45 / 36 Cold Cranking Amperage (A) 410 (SAE / 328) Reserve Capacity (Min) 80
