Hyundai Venue: Keyless Entry And Burglar Alarm / Components and components location

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and components location

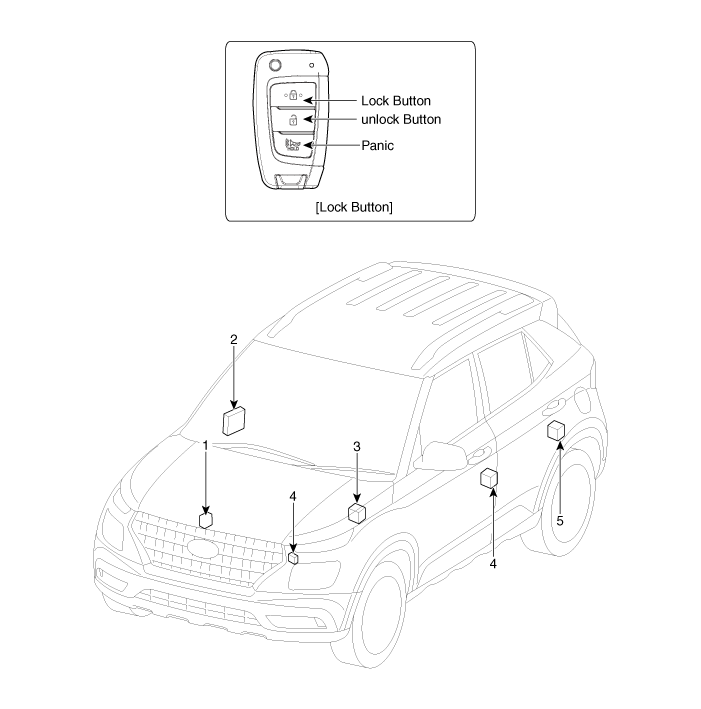

Component Location

Hyundai Venue. Components and components location

1. Hood switch
2. Integrated Body Control Unit (IBU)
3. Door lock / unlock buzzer
4. Front door lock actuator & switch
5. Rear door lock actuator & switch

    Specifications

    Specification Item Specification Power source 3V Operating temperature -10°C to +60°C (14°F to +140°F) RF Modulation FSK LF Modulation ASK RF frequency 433...

    Description and operation

    Description Burglar Alarm State [B/A State] B/A State Description DISARM 1) In "DISARM" state, no vehicle start inhibition...
