Hyundai Venue: Air Conditioning System / Components and components location
Hyundai Venue (QX) (2020-2024) Service Manual / Heating, Ventilation and Air Conditioning / Air Conditioning System / Components and components location
| Component Location |

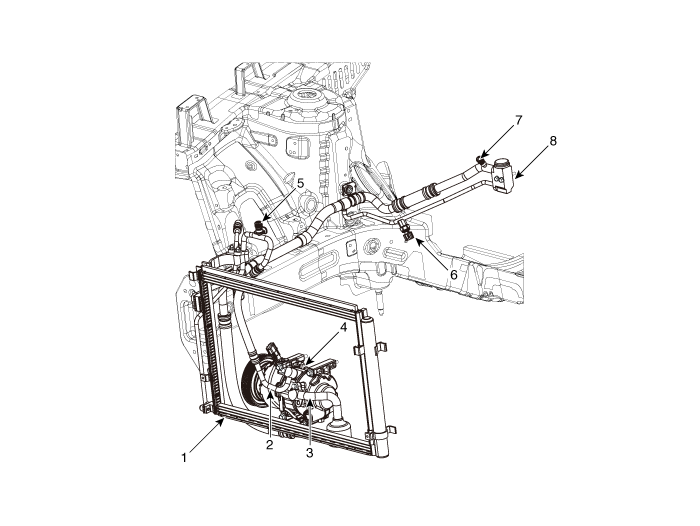

[Engine Room]
| 1. Condenser 2. Discharge hose 3. Suction & Liquid tube assembly 4. Compressor |
5. Service port (High pressure) 6. A/C Pressure transducer (APT) 7. Service port (Low pressure) 8. Expansion valve |
[Interior]
| 1. Heater & A/C Control Unit 2. Photo sensor |
3. Heater & Blower Unit |
Repair procedures
Refrigerant System Service
Basics (R-134a)
Refrigerant Recovery
Use only service equipment that is U.L-listed and is certified to meet the requirements
of SAE J2210 to remove HFC-134a(R-134a) from the air conditioning system...
Compressor oil. Repair procedures
Oil Specification
1.
The HFC-134a system requires synthetic (PAG) compressor oil whereas
the R-12 system requires mineral compressor oil...
