Components

Hyundai Venue. Components and components location

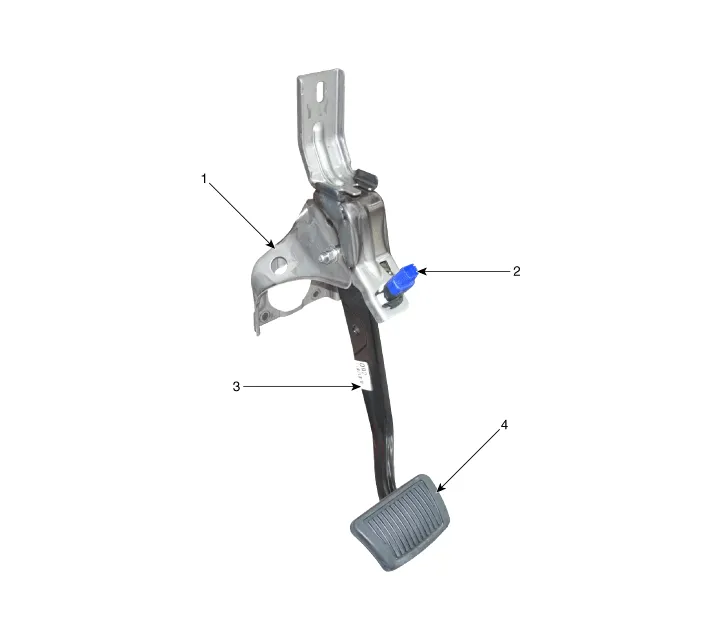

1. Brake member assembly
2. Stop lamp switch
 3. Brake pedal arm assembly
4. Brake pedal pad

    Removal 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Remove the crash pad lower panel.
