Components (1)

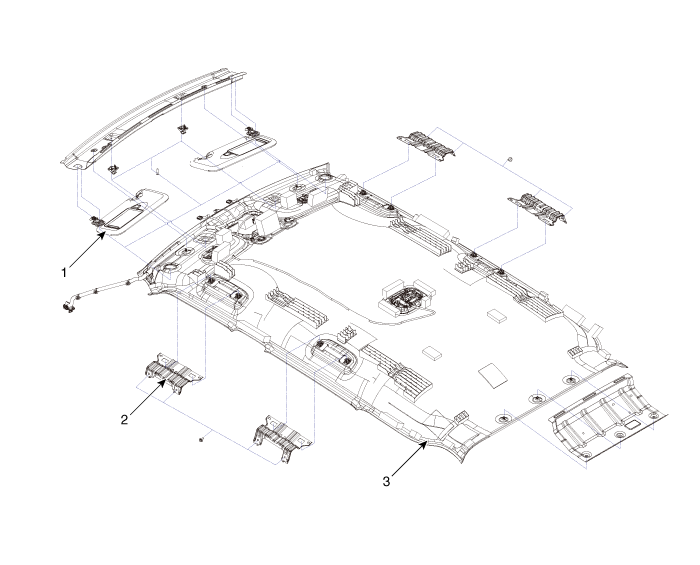

[General Type]

Hyundai Venue. Components and components location

1. Sunvisor
2. Assist handle bracket
3. Roof trim

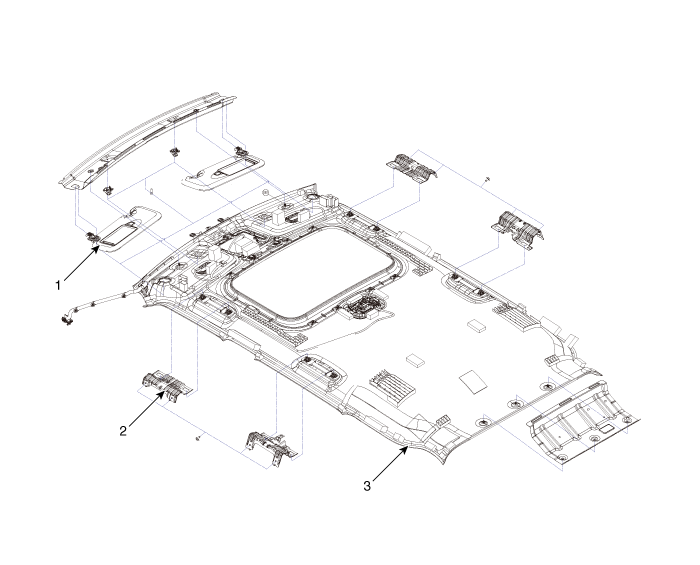

[Sunroof Type]

Hyundai Venue. Components and components location

1. Sunvisor
2. Assist handle bracket
3. Roof trim

    Roof Trim

    ..

    Sunvisor. Components and components location

    ..
