Hyundai Venue: Rear Bumper / Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location

Component Location

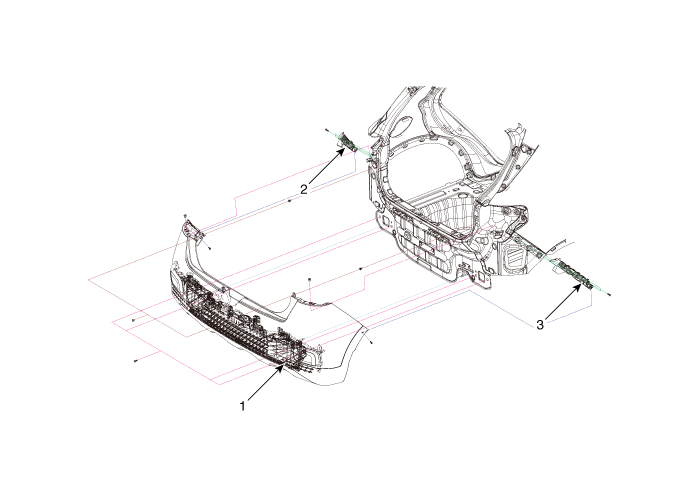

Hyundai Venue. Components and components location

1. Rear bumper cover
2. Rear bumper side bracket [LH]

3. Rear bumper side bracket [RH]

Rear Bumper

Rear Bumper Cover. Components and components location
