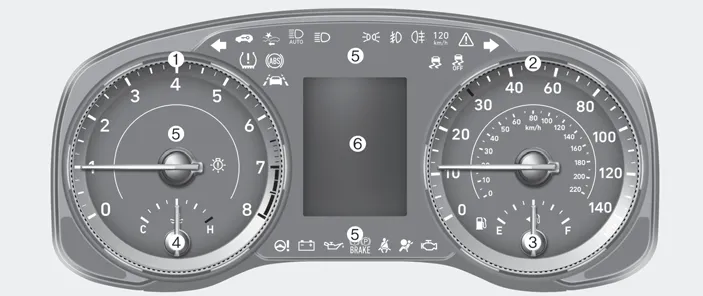

Hyundai Venue (QX): Instrument Cluster
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. LCD display (including trip computer)
- Instrument Cluster Control
- Gauges and Meters
- Transmission Shift Indicator
- Warning and Indicator Lights
- LCD Display Messages
- LCD Display
- Trip Computer
Air bag warning labels, required by the U.S. National Highway Traffic Safety Administration (NHTSA), are attached to alert the driver and passengers of potential risks of the air bag system.
Adjusting instrument cluster illumination When the vehicle's parking lamps or headlamps are on, press the illumination control button to adjust the brightness of the instrument panel illumination.
