Description
The oil pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels.
The oil becomes highly pressurized as it exits the oil pump and passes through the line pressure valve before being fed to the clutch & brake control valve, clutch, and brakes.
TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

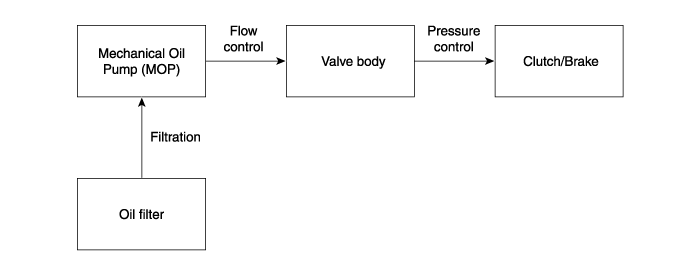

▶ Flow of the hydraulic system

Hyundai Venue. Description and operation

    Hydraulic System

    ..

    Mechanical Oil Pump. Description and operation

    Description • The oil pump is built-in as a single unit with the 26 Brake chamber. • Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and operation of the clutch and brakes...
