Hyundai Venue: Engine And Transmission Assembly / Engine Mounting. Repair procedures
[Roll road Mounting]
1. |

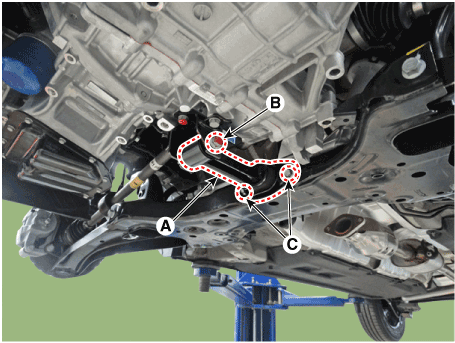

Remove the Roll rod mounting (A).
Tightening torque
Bolt (B) :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
Bolts (C) :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_97.gif)
|
2. |

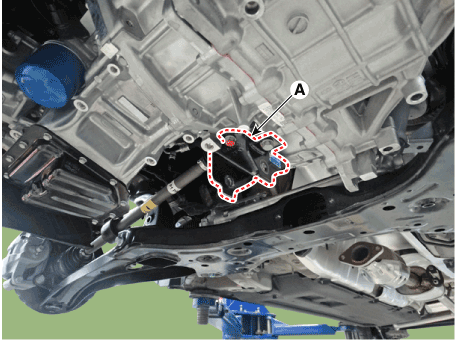

Remove the roll rod mounting suppot bracket (A).
Tightening torque :
49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_98.gif)
|
3. |
Installation is reverse order of removal.
|
[Egnine mounting support bracket]
1. |

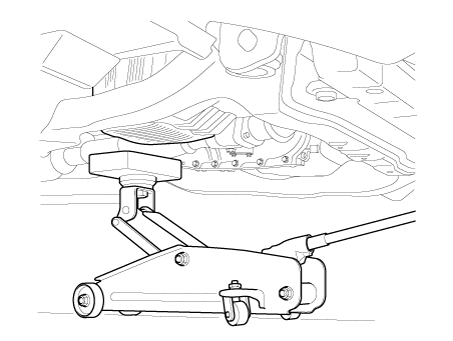

Install the jack to the edge of upper oil pan to support the engine.
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_99.gif)
•
|
Insert the rubber block between jack and oil pan.
|
|
|
2. |

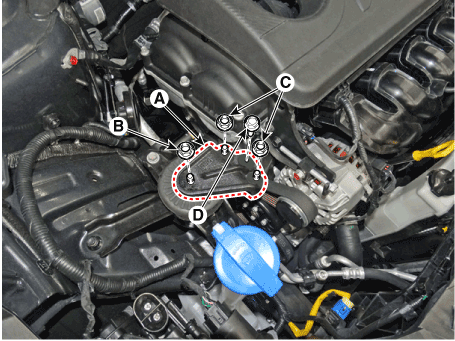

Remove the engine mounting support bracket (A).
Tightening torque
Nut (B) :
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)
Nuts (C) and bolt (D) :
58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.3 - 54.2 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_101.gif)
|
3. |

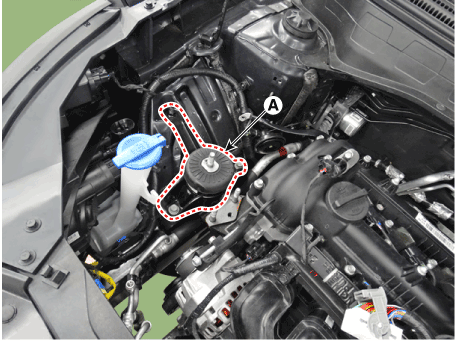

Removal the engine mounting bracket (A).
Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_102.gif)
|
4. |
Installation is reverse order of removal.
|
[Transaxle mounting bracket]
1. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
2. |
Install the jack to the edge of transaxle.
|
3. |

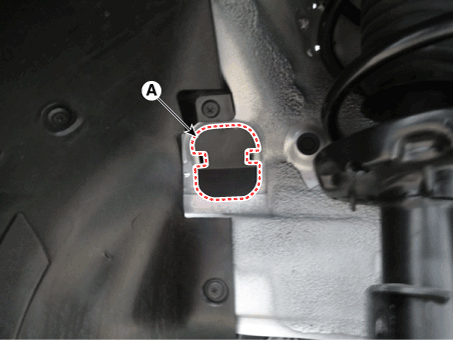

Remove the cover (A).
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_103.gif)
|
4. |

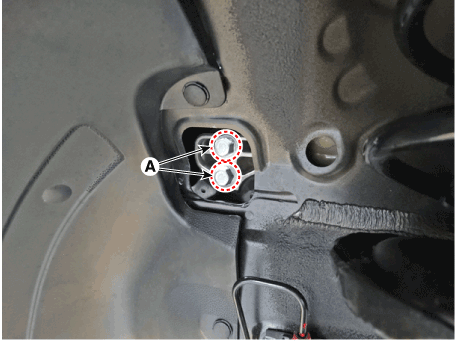

Remove the transaxle support bracket mounting bolt (A).
Tightening torque :
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_104.gif)
|
5. |

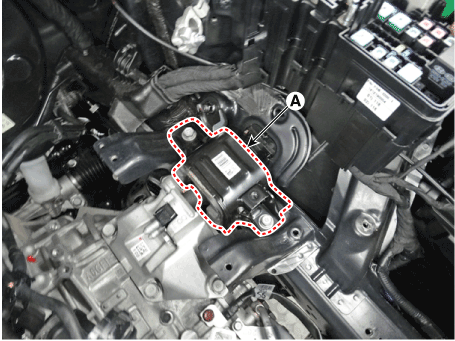

Remove the transaxle mounting bracket (A).
Tightening torque :
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
|
![Hyundai Venue. Engine Mounting. Repair procedures](images/engine_mounting_repair_procedures-315/287/hyundai_venue__engine_mounting_repair_procedures_105.gif)
|
6. |
Installation is reverse order of removal.
|
