Replacement
1.

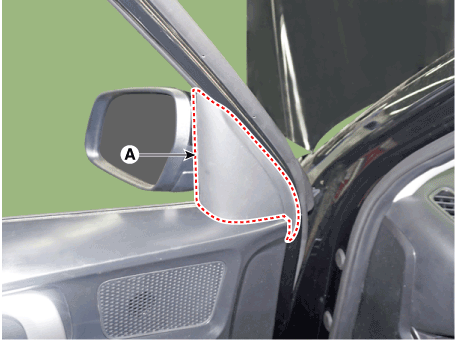

Using a flat-tip screwdriver and remove the front door quadrant inner cover (A).

Hyundai Venue. Front Door Trim. Repair procedures
2.

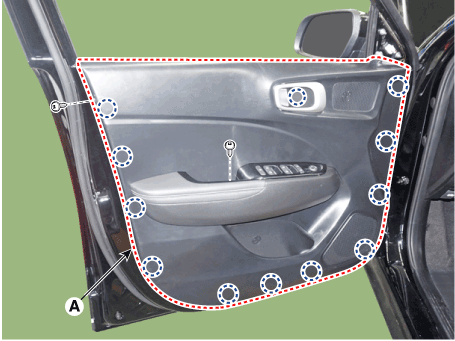

Loosen the mounting screw and remove the front door trim (A).

Hyundai Venue. Front Door Trim. Repair procedures
3.

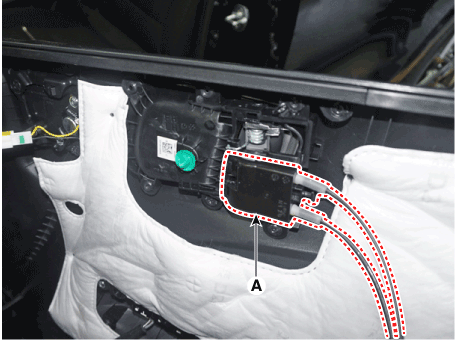

Remove the front door inside handle cage (A).

Hyundai Venue. Front Door Trim. Repair procedures
4.

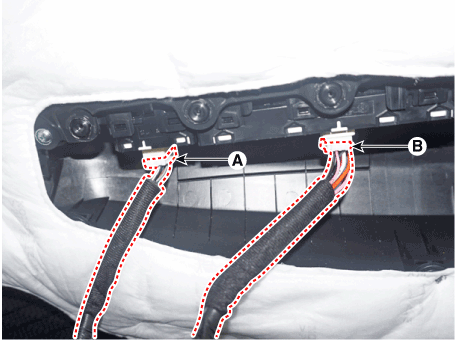

Press the lock pin and separate the mirror switch connector (A) and power window connector (B)

Hyundai Venue. Front Door Trim. Repair procedures
5.
To install, reverse removal procedure.
Hyundai Venue. Front Door Trim. Repair procedures
•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.
