Hyundai Venue: Front Seat / Front Seat Cushion Cover. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Cushion Cover. Repair procedures

Replacement
Hyundai Venue. Front Seat Cushion Cover. Repair procedures
•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat shield outer cover.
(Refer to Front Seat - "Front Seat Shield Outer Cover")
3.
Remove the front seat shield inner cover.
(Refer to Front Seat - "Front Seat Shield Inner Cover")
4.
Remove the front seat lower protector (A).

Hyundai Venue. Front Seat Cushion Cover. Repair procedures
5.

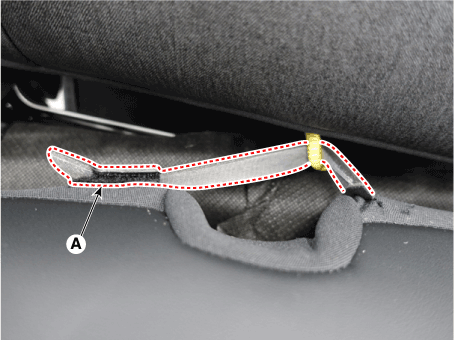

Remove the front seat cushion protector (A) from front seat cushion frame.

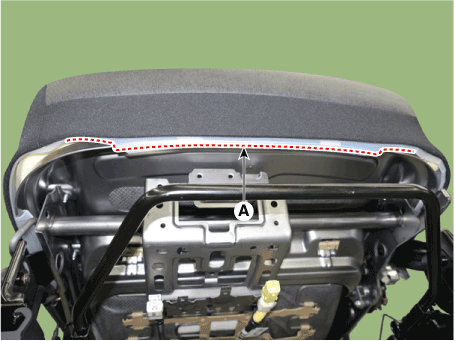

[Lower]

Hyundai Venue. Front Seat Cushion Cover. Repair procedures

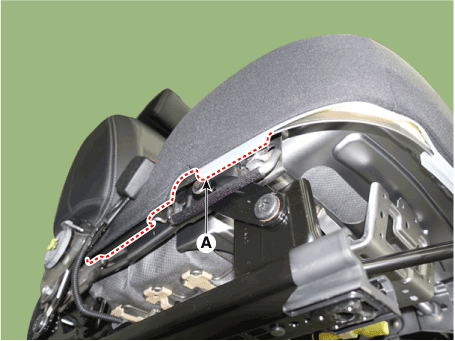

[Upper]

Hyundai Venue. Front Seat Cushion Cover. Repair procedures

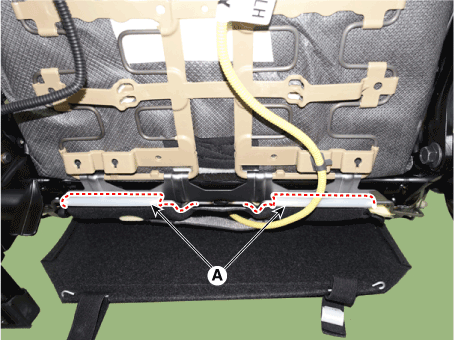

[RH]

Hyundai Venue. Front Seat Cushion Cover. Repair procedures

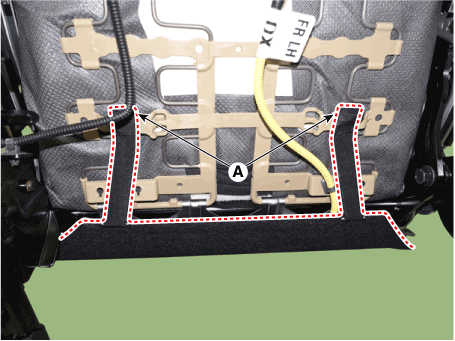

[LH]

Hyundai Venue. Front Seat Cushion Cover. Repair procedures
6.

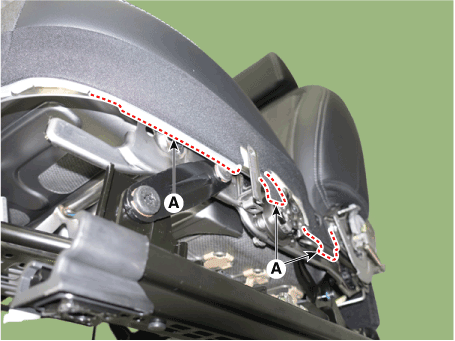

Separate the seat inner type (A).

Hyundai Venue. Front Seat Cushion Cover. Repair procedures
7.

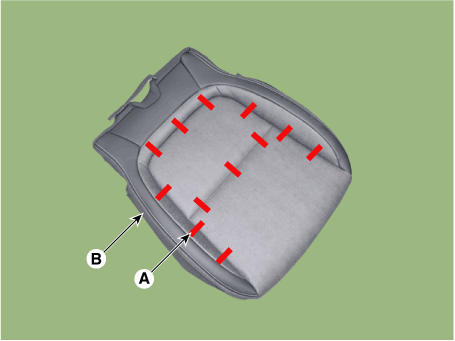

After removing the hog-ring clips (A) inside the front seat back cover, remove the seat back cover (B).
Hyundai Venue. Front Seat Cushion Cover. Repair procedures
•
Be careful not to break the sponge insert wire.

Hyundai Venue. Front Seat Cushion Cover. Repair procedures
8.
To install, reverse removal procedure.
Hyundai Venue. Front Seat Cushion Cover. Repair procedures
•
Make sure that the connectors are connected completely.
•
Replace any damaged clips (or pin-type retainers).
•
To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
•

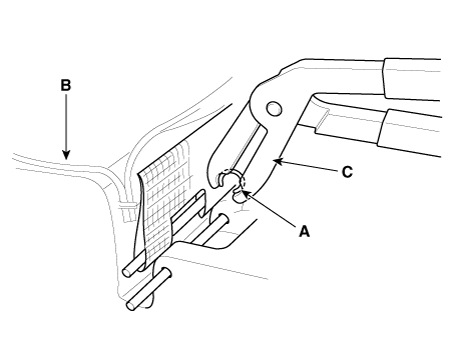

Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Hyundai Venue. Front Seat Cushion Cover. Repair procedures
