Hyundai Venue: Controller / Heater & A/C Control Unit (Manual). Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Heating, Ventilation and Air Conditioning / Controller / Heater & A/C Control Unit (Manual). Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the console upper front garnish.
(Refer to Floor Console - "Floor Console Assembly")
3.
Remove the center fascia panel.
(Refer to Body (Interior and Exterior) - "Center Fascia Panel")
4.
Remove the audio and AVN head unit.
(Refer to Body Electrical System - "Audio Unit")
5.

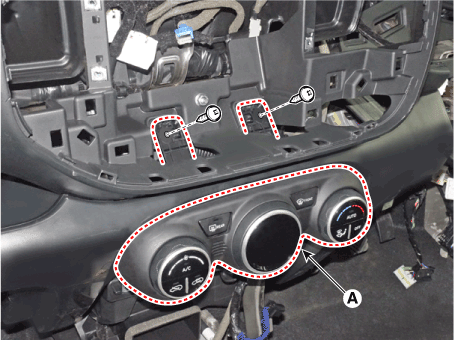

Loosen the mounting screws and remove the A/C & heater controller unit (A).

Hyundai Venue. Heater & A/C Control Unit (Manual). Repair procedures

6.

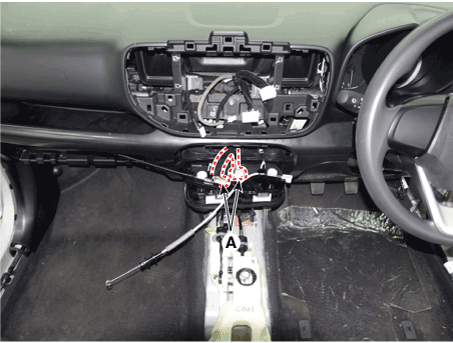

Separate the manual controller cable (A)

Hyundai Venue. Heater & A/C Control Unit (Manual). Repair procedures

7.

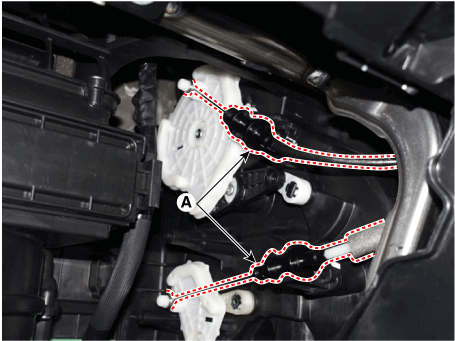

Separate the A/C & heater controller unit connector (A).

Hyundai Venue. Heater & A/C Control Unit (Manual). Repair procedures

8.
To install, reverse the removal procedure.
Hyundai Venue. Heater & A/C Control Unit (Manual). Repair procedures
Make sure the connector is connected in properly.
Replace any damaged clips.
