Hyundai Venue: Exterior Lights / High beam operation

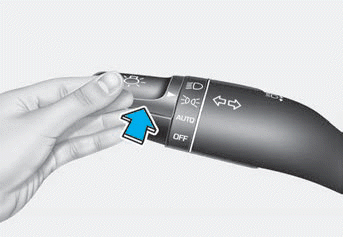

To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position.
The high beam indicator will light when the headlamp high beams are switched on.

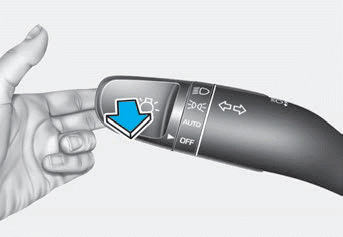

To turn off the high beam headlamp, pull the lever towards you. The low beams will turn on.
WARNING
Do not use high beam when there are other vehicles approaching you. Using high beam could obstruct the other driver’s vision.
To flash the high beam headlamp, pull the lever towards you, then release the lever. The high beams will remain ON as long as you hold the lever towards you.
Lighting control
To operate the lights, turn the knob at the end of the control lever to one of
the following positions:
1. OFF position
2. AUTO headlamp position
3...
High Beam Assist (HBA)
High Beam Assist (HBA) is a system that automatically adjusts the headlamp range
(switches between high beam and low beam) according to the brightness of other vehicles
and road conditions...
