Hyundai Venue: Exterior Lights / Lighting control

Hyundai Venue (QX) (2020-2024) Owners Manual / Convenient Features / Exterior Lights / Lighting control

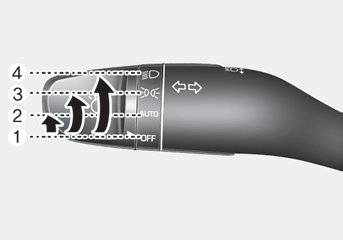

To operate the lights, turn the knob at the end of the control lever to one of the following positions:

Hyundai Venue. Lighting control

1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position

Daytime running light (DRL)

The Daytime Running Lights (DRL) can make it easier for others to see the front of your vehicle during the day, especially after dawn and before sunset.

The DRL system will turn the dedicated lamp OFF when:

  • The headlamps are ON.
  • The parking lamps are ON.
  • The vehicle is turned off.
  • The parking brake is engaged.

Cornering lamp (if equipped)

While driving a corner, for greater visibility and safety, either the left or right side cornering lamp will turn on automatically. The cornering lamp will turn on when one of the following conditions occur.

  • Vehicle speed is less than 6 mph (10 km/h) and steering wheel angle is turned approximately 80 degrees with the low beam on.
  • Vehicle speed is between 6 mph (10 km/h) to 56 mph (90 km/h) and steering wheel angle is turned approximately 35 degrees with the low beam on.
  • When the vehicle is in reverse with one of the conditions above satisfied, the light opposite to the direction the steering wheel is turned will turn on.

Hyundai Venue. Lighting control

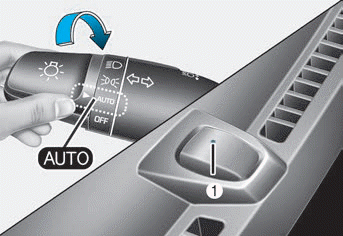

AUTO headlamp position (if equipped)

The parking lamp and headlamp will be turned ON or OFF automatically depending on the amount of daylight as measured by the ambient light sensor on the center dash (1).

Even with the AUTO headlamp feature in operation, it is recommended to manually turn ON the headlamps when driving at night or in a fog, driving in the rain, or when you enter dark areas, such as tunnels and parking facilities.

NOTICE

  • Do not cover or spill anything on the sensor (1) located in front of the instrument panel.
  • Do not clean the sensor using a window cleaner, the cleanser may leave a light film which could interfere with sensor operation.
  • If your vehicle has window tint or other types of metallic coating on the front windshield, the AUTO headlamp system may not work properly.

Hyundai Venue. Lighting control

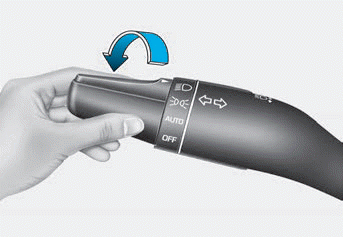

Parking lamp position (Hyundai Venue. Lighting control)

The parking lamp, license plate lamp and instrument panel lamp are turned ON.

Hyundai Venue. Lighting control

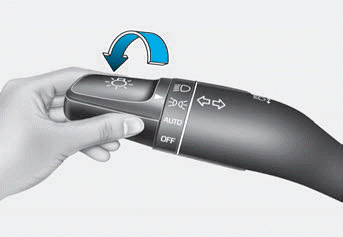

Headlamp position (Hyundai Venue. Lighting control)

The headlamp, parking lamp, license plate lamp and instrument panel lamp are turned ON.

Information

The ignition switch must be in the ON position to turn on the headlamp.

    Exterior Lights

    ..

    High beam operation

    To turn on the high beam headlamp, push the lever away from you. The lever will return to its original position. The high beam indicator will light when the headlamp high beams are switched on...
