Hyundai Venue: Timing System / Idler. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Engine Mechanical System / Timing System / Idler. Repair procedures

Removal and Installation
1.
Remove the drive belt.
(Refer to Timing System - "Dreve Belt")
2.

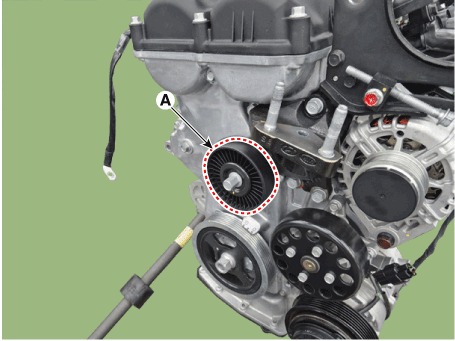

Remove the drive belt idler (A).
Tightening torque :
42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

Hyundai Venue. Idler. Repair procedures

Hyundai Venue. Idler. Repair procedures
Check the idler. if it is grease leak or abnormal rotation, replace the idler.
3.
Installation is reverse order of removal.

    Idler. Components and components location

    ..

    Drive Belt Tensioner. Components and components location

    ..
