Hyundai Venue: Light Bulbs / Interior Light Bulb Replacement

Hyundai Venue (QX) (2020-2024) Owners Manual / Maintenance / Light Bulbs / Interior Light Bulb Replacement

Map lamp, Room lamp, Vanity mirror lamp, Luggage compartment lamp and Glove box lamp

Hyundai Venue. Interior Light Bulb Replacement

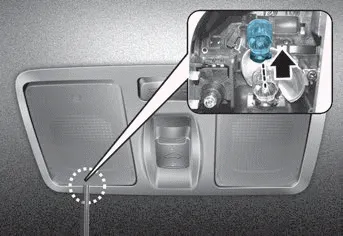

Map lamp (Type A)

Hyundai Venue. Interior Light Bulb Replacement

Map lamp (Type B)

Hyundai Venue. Interior Light Bulb Replacement

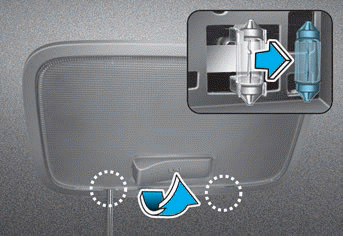

Room lamp

Hyundai Venue. Interior Light Bulb Replacement

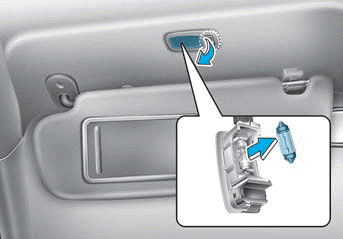

Vanity mirror lamp

Hyundai Venue. Interior Light Bulb Replacement

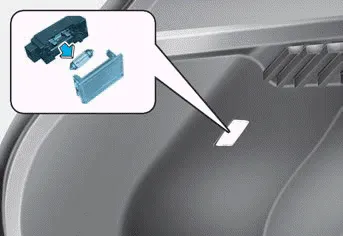

Luggage compartment lamp

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing.

2. Remove the bulb by pulling it straight out.

WARNING

Prior to working on the Interior Lights, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

3. Install a new bulb in the socket.

4. Align the lens tabs with the interior lamp housing notches and snap the lens into place.

NOTICE

Use care not to dirty or damage lens, lens tab, and plastic housings.
