High Mounted Stop Lamp Replacement

Hyundai Venue. High Mounted Stop Lamp & License Plate Light Bulb Replacement

1. Open the liftgate.

2. Remove the lamp cover from the lamp assembly with a cross-tip screwdriver.

3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

4. Remove the bulb by pulling it straight out.

5. Insert a new bulb in the socket.

6. Reinstall the light assembly to the body of the vehicle.

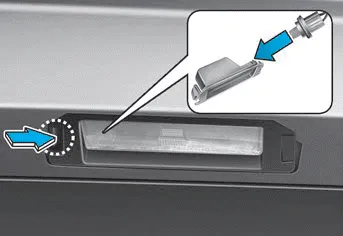

License Plate Light Bulb Replacement

Hyundai Venue. High Mounted Stop Lamp & License Plate Light Bulb Replacement

1. Remove the cover by pressing it as direction of the arrows.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb.

4. Reinstall in the reverse order.
