Hyundai Venue: Motor Driven Power Steering / MDPS Control Unit. Repair procedures

Hyundai Venue (QX) (2020-2023) Service Manual / Steering System / Motor Driven Power Steering / MDPS Control Unit. Repair procedures

Replacement
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.

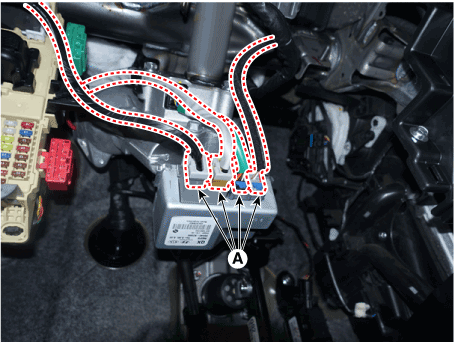

Disconnect MDPS ECU connectors (A) (B).

Hyundai Venue. MDPS Control Unit. Repair procedures

4.

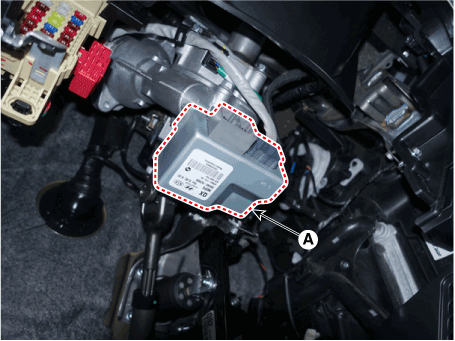

Loosen the MDPS ECU bracket bolts and then remove the MDPS ECU (A).
Tightening torque :
14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)

Hyundai Venue. MDPS Control Unit. Repair procedures

5.
Install in the reverser order of removal.
6.
Conduct the "EPS Type Recognition" by Diagnostic tool.
(Refer to MDPS Motor - "Diagnosis with Diagnostic tool")
7.
Conduct the "SAS Calibration" by diagnostic tool.
(Refer to MDPS Motor - "Diagnosis with Diagnostic tool")
8.
Check the DTC.
9.
Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
