Hyundai Venue: Smart Key / Panic button, Start-up, Mechanical key, Loss of a smart key
Panic button
Press and hold the Panic button (4) for more than one second. The horn sounds
and hazard warning lights blink for about 30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Start-up
You can start the vehicle without inserting the key.
NOTICE
To prevent damaging the smart key:
- Keep the smart key in a cool, dry place to avoid damage or malfunction.
Exposure to moisture or high temperature may cause the internal circuit of the
smart key to malfunction which may not be covered under warranty.
- Avoid dropping or throwing the smart key.
- Protect the smart key from extreme temperatures.
Mechanical key
If the Smart Key does not operate normally, you can lock or unlock the driver’s
door by using the mechanical key.

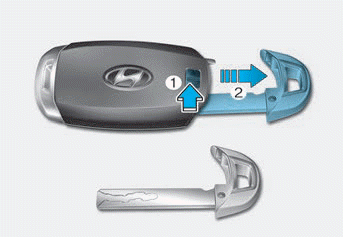

To remove the mechanical key from the smart key FOB, slide the release lever
in the direction of the arrow (1) and then pull the mechanical key (2) outward.
To unlock the vehicle using the mechanical key. insert the mechanical key into
the key hole in the driver door.
To reinstall the mechanical key into the FOB, insert the key in the top of the
key FOB and push inward until a click sound is heard.
Loss of a smart key
A maximum of two Smart Keys can be registered to a single vehicle. If you happen
to lose your smart key, you should immediately take the vehicle and remaining keys
to your authorized HYUNDAI dealer or tow the vehicle, if necessary.
You can start the engine and turn on the climate system by pressing the remote
start button (3) outside the vehicle.
To start and stop engine remotely:
1...
The smart key may not work if any of the following occur:
The smart key is close to a radio transmitter such as a radio station or
an airport which can interfere with normal operation of the transmitter...
